Dataset name: NH859
Datafile #1: SIR
Datafile Type: Non-spatial acoustic data, e.g., headphone IRs (SOFA)
Datafile Name: NH859_SIR.sofa
Size: 4002037 bytes = 3.82 MB. Date created: 2026-02-16 09:22:04. Date updated: 2026-03-02 16:08:54.
SOFA Properties:| Dimensions | SOFA Conventions | R | E | M | N | S |
|---|---|---|---|---|---|
| GeneralFIR-E 2.0 | 25 | 20 | 7 | 256 | 6 |

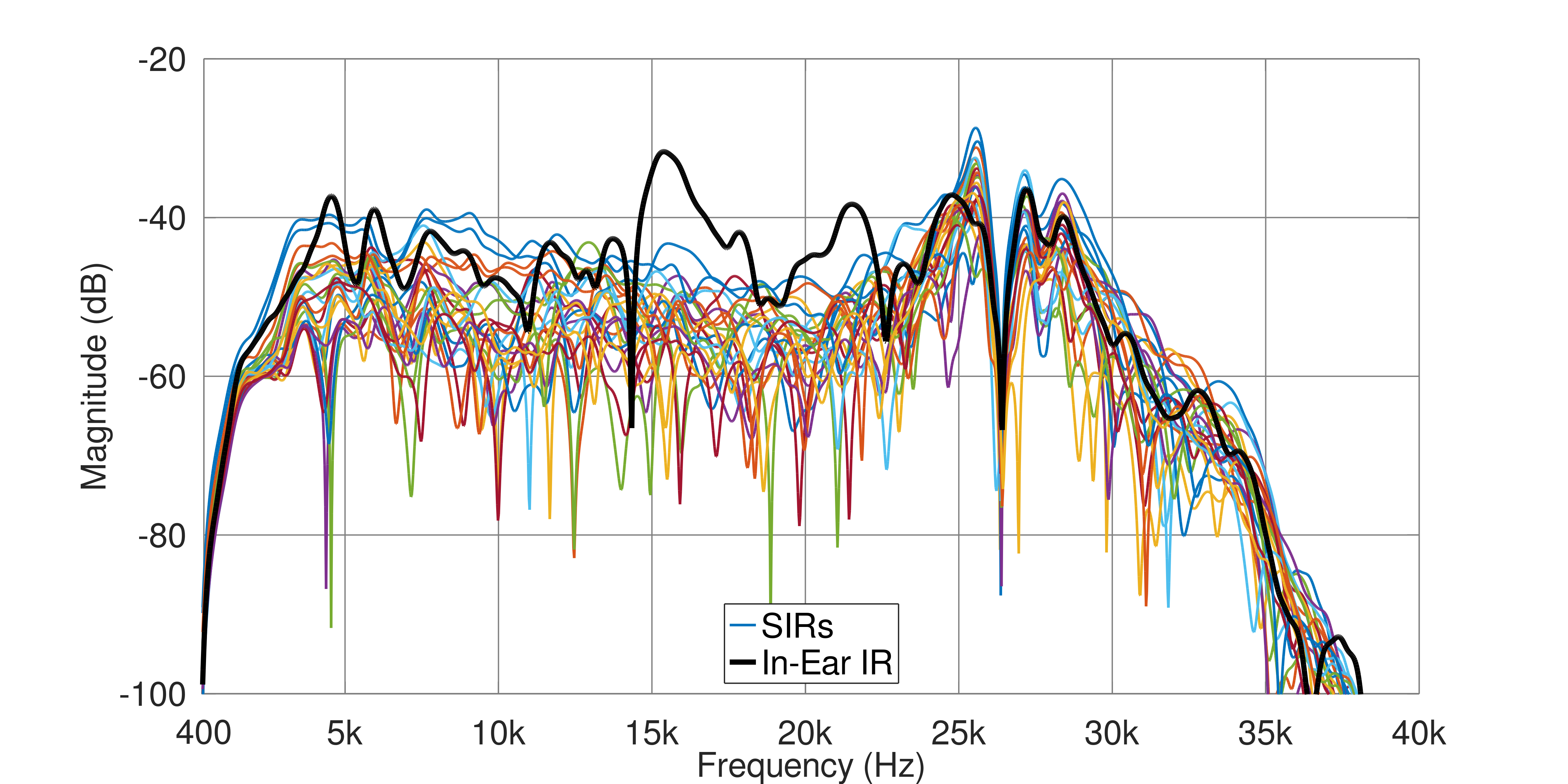

| E | Spectrum, Effect of R: M=1, E varies | |
|---|---|---|
| Domain: Amplitude spectral Frequency axis: Linear |
|
|
| Note: For improved presentation, the spectra shown were 16 times oversampled. |
||

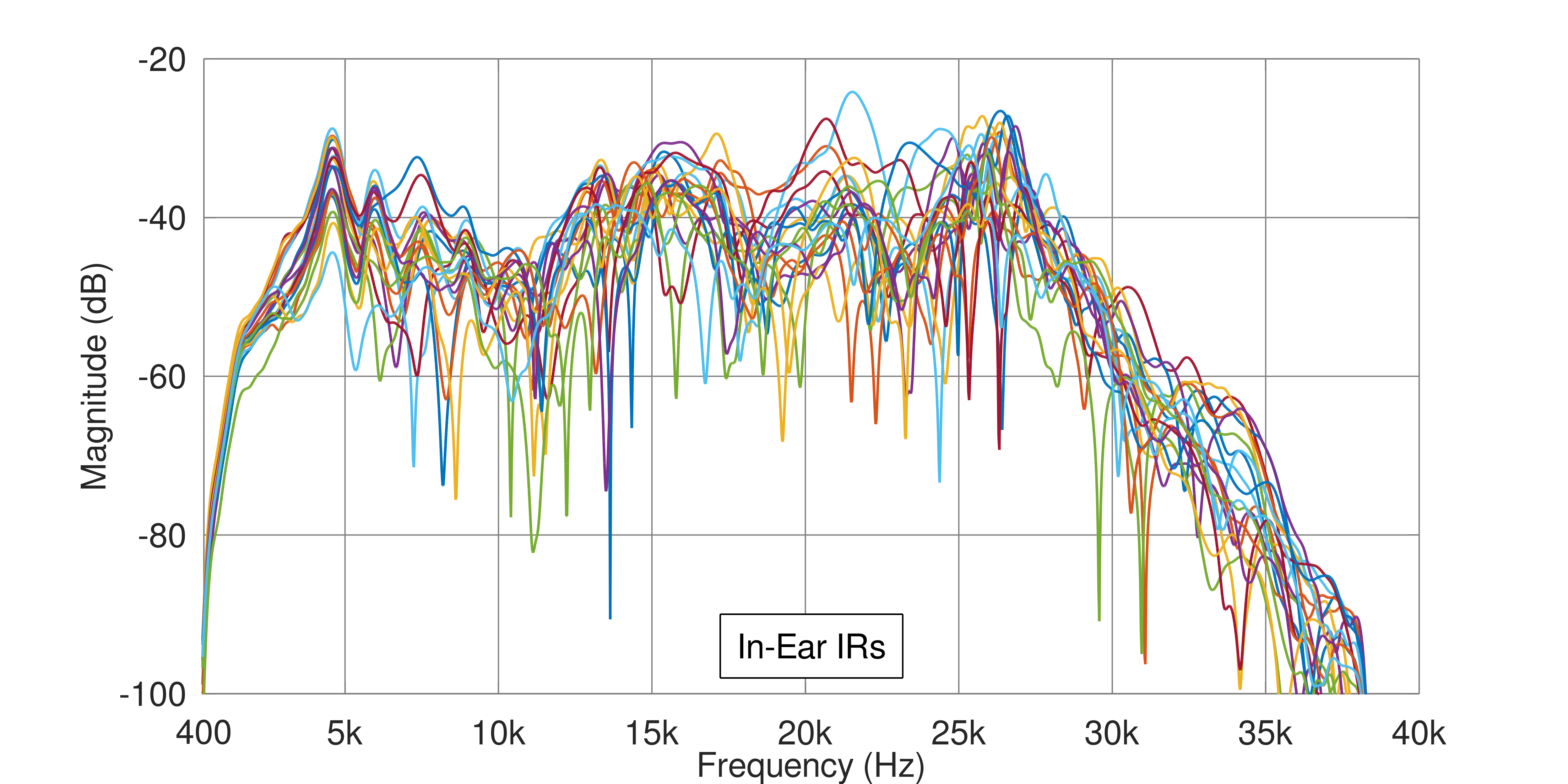

| R | Spectrum, Effect of E: M=1, R varies | |
|---|---|---|
| Domain: Amplitude spectral Frequency axis: Linear |
|
|
| Note: For improved presentation, the spectra shown were 16 times oversampled. |
||

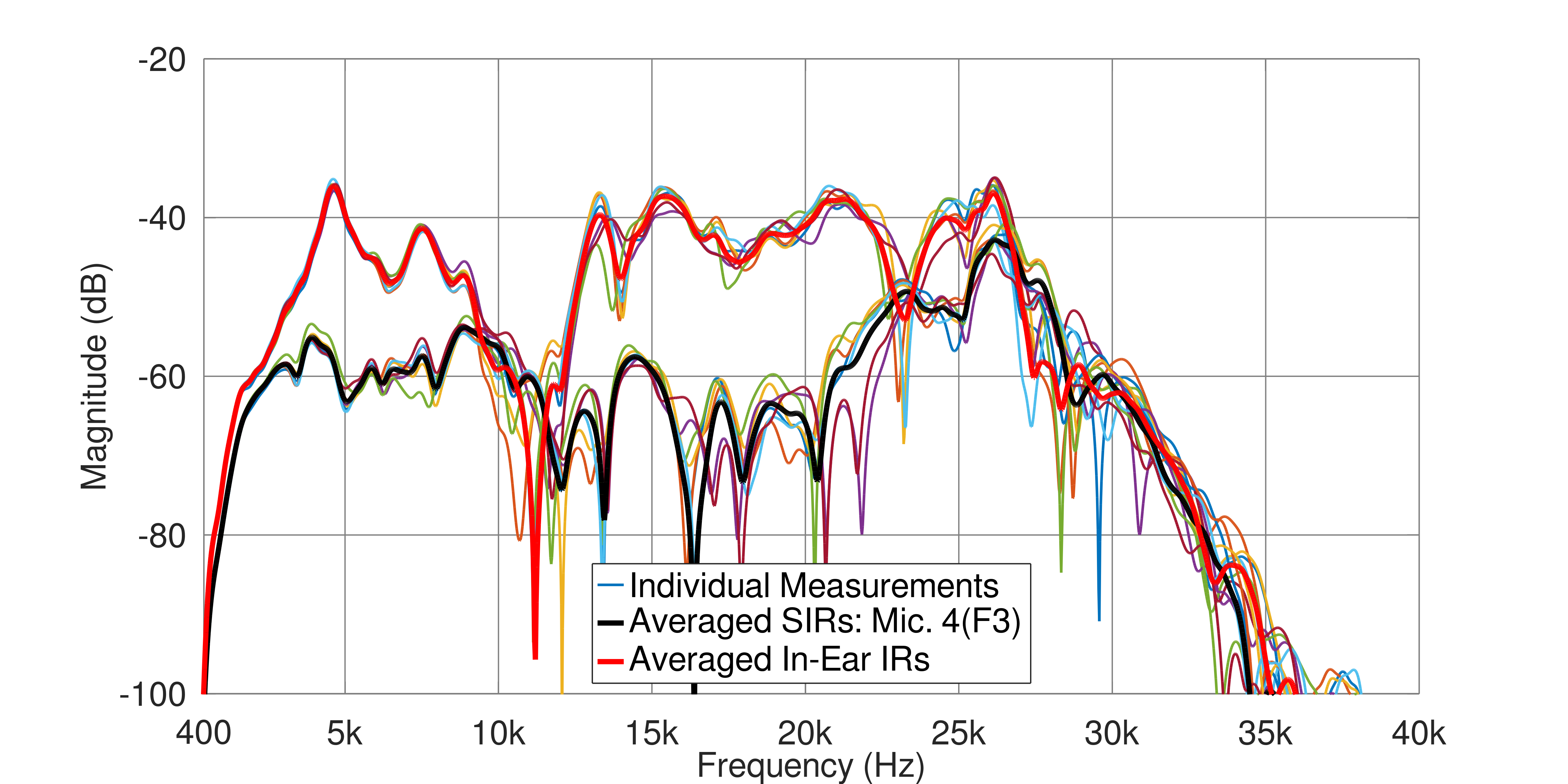

| Spectrum, Effect of M: R=[1(in-ear), 4(F3)], E=12(13) | ||
|---|---|---|
| Domain: Amplitude spectral Frequency axis: Linear |
|
|
| Note: For improved presentation, the spectra shown were 16 times oversampled. |
||

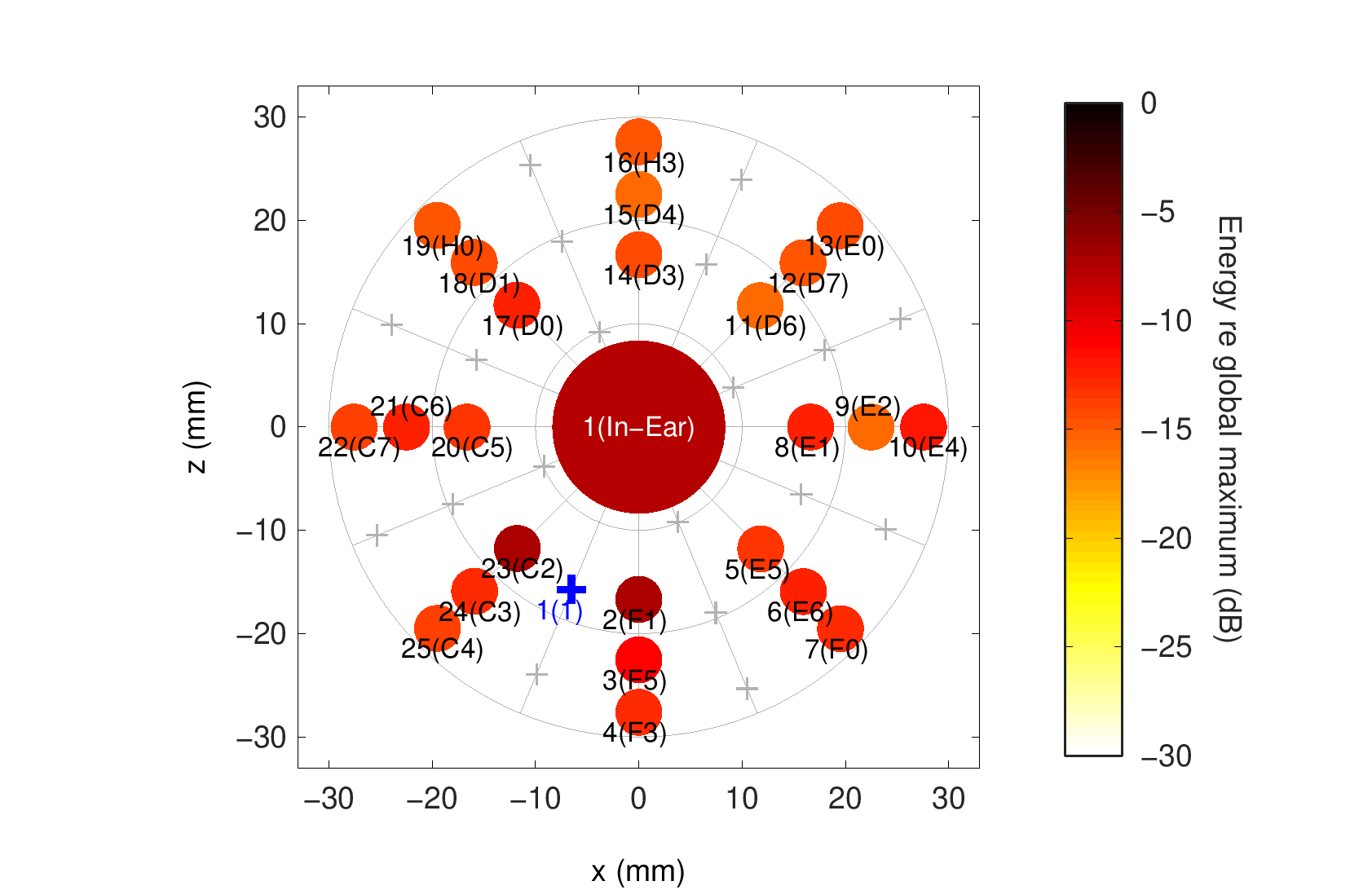

| E | Energy, Effect of R: M=1, E varies |
|---|---|
|
|
| Note: Sums of squared IRs at receivers (coloured dots) when one emitter is active (blue cross). The position of the in-ear microphone is indicative only as the actual position has not been recorded. |
|

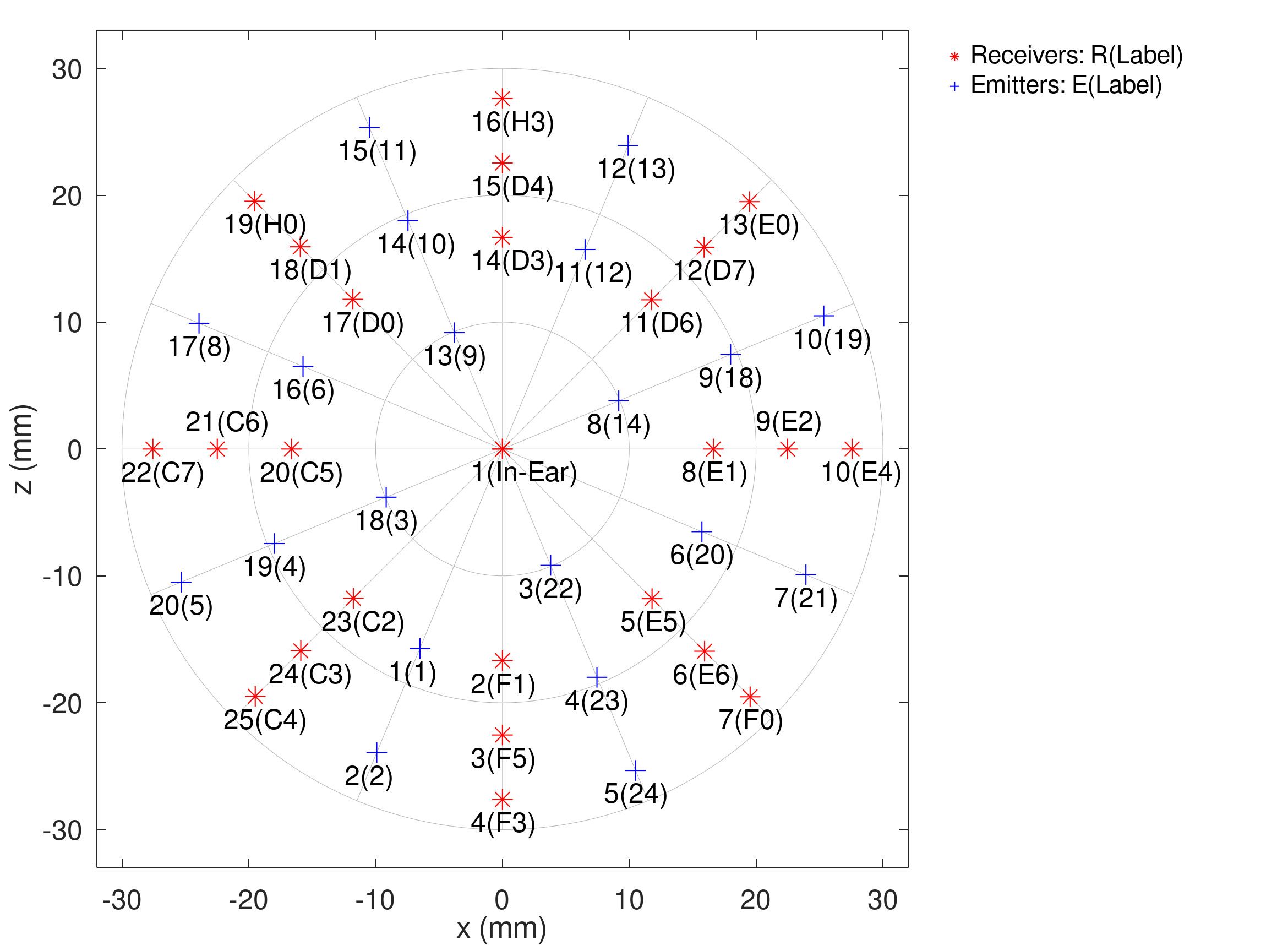

| Geometry |
|---|
|
| Note: The position of the in-ear microphone is indicative only as the actual position has not been recorded. |
Datafile #2: HRTF
Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: NH859_HRTF.sofa
Size: 223689 bytes = 218.45 kbytes. Date created: 2026-02-16 09:21:59. Date updated: 2026-03-03 02:52:36.
SOFA Properties:| Dimensions | SOFA Conventions | R | E | M | N | S |
|---|---|---|---|---|---|
| SimpleFreeFieldHRIR 1.0 | 2 | 1 | 91 | 256 | 0 |
| Left ear | Right ear | |
|---|---|---|
| Domain: Time Plane: Horizontal |
|
|
| Domain: Amplitude spectral Plane: Median Frequency axis: Linear |
|
|
| ITDs in the horizontal plane (in ms) | Geometry of the available HRTFs |
|---|---|
|
|
