Database: SONICOM Acoustic HRTFs 48k (2026)

Subtitle: Acoustically measured HRTFs sampled at 48 kHz
Cite as: Engel, I., Daugintis, R., Vicente, T., Hogg, A., Pauwels, J., Tournier, A., Meyer, J., Martin, V., Marggraf-Turley, N., Webb, J., Pirard, L., La Magna, N., Turvey, O., Poole, K., and Picinali, L. (2026). "SONICOM Acoustic HRTFs 48k ", The SONICOM Ecosystem: Database #94. URL: https://ecosystem.sonicom.eu/databases/94. Copy Citation to Clipboard

Dataset name: P0396

Datafile #1: HRTFs

Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: P0396_FreeFieldComp_48kHz.sofa

Size: 2810306 bytes = 2.68 MB. Date created: 2026-08-17 06:31:07. Date updated: 2026-08-17 07:33:23.

SOFA Properties:
Dimensions
SOFA Conventions R E M N S
SimpleFreeFieldHRIR 1.0 2 1 793 256 0

Left ear Right ear
Domain: Time

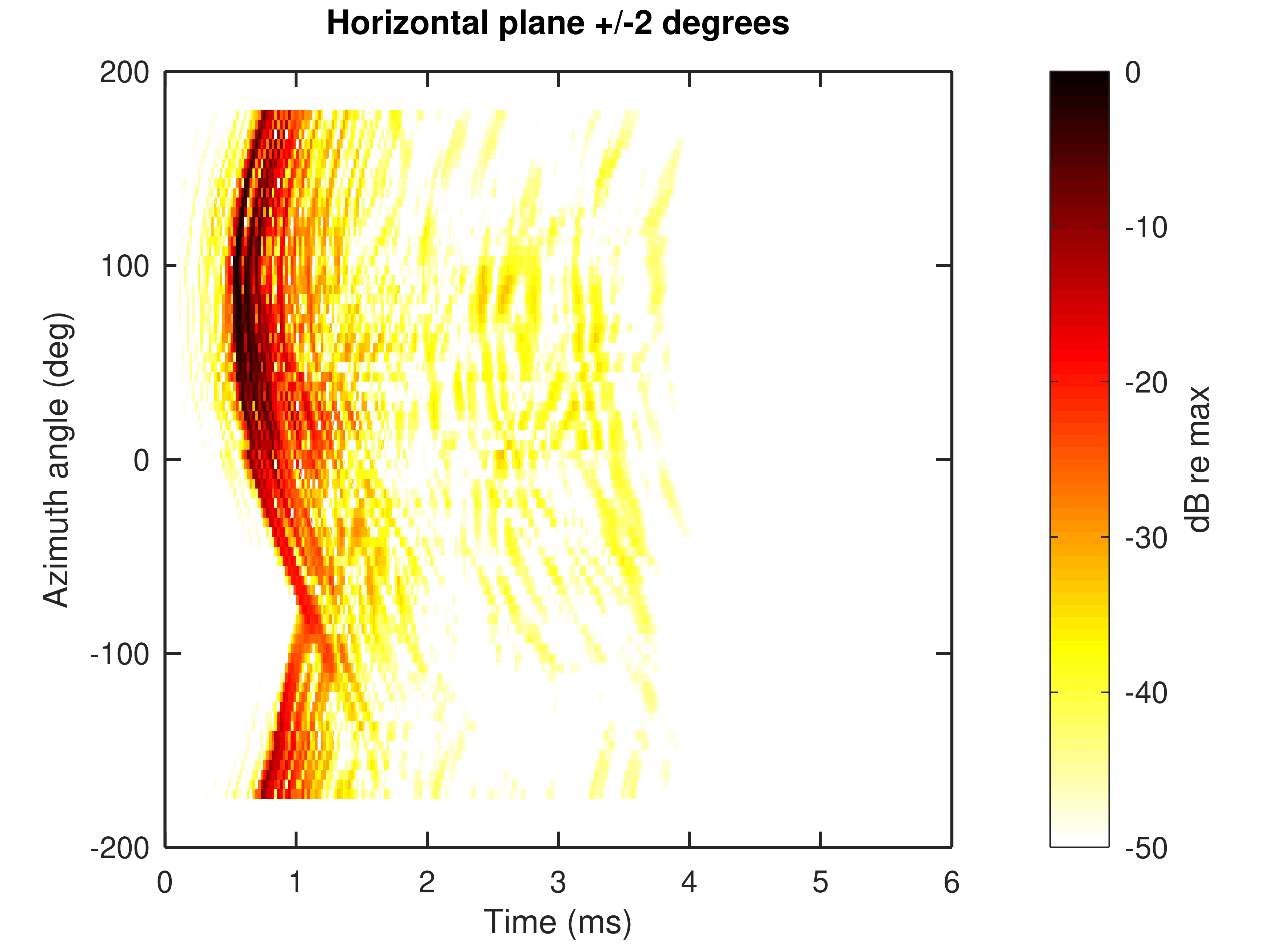

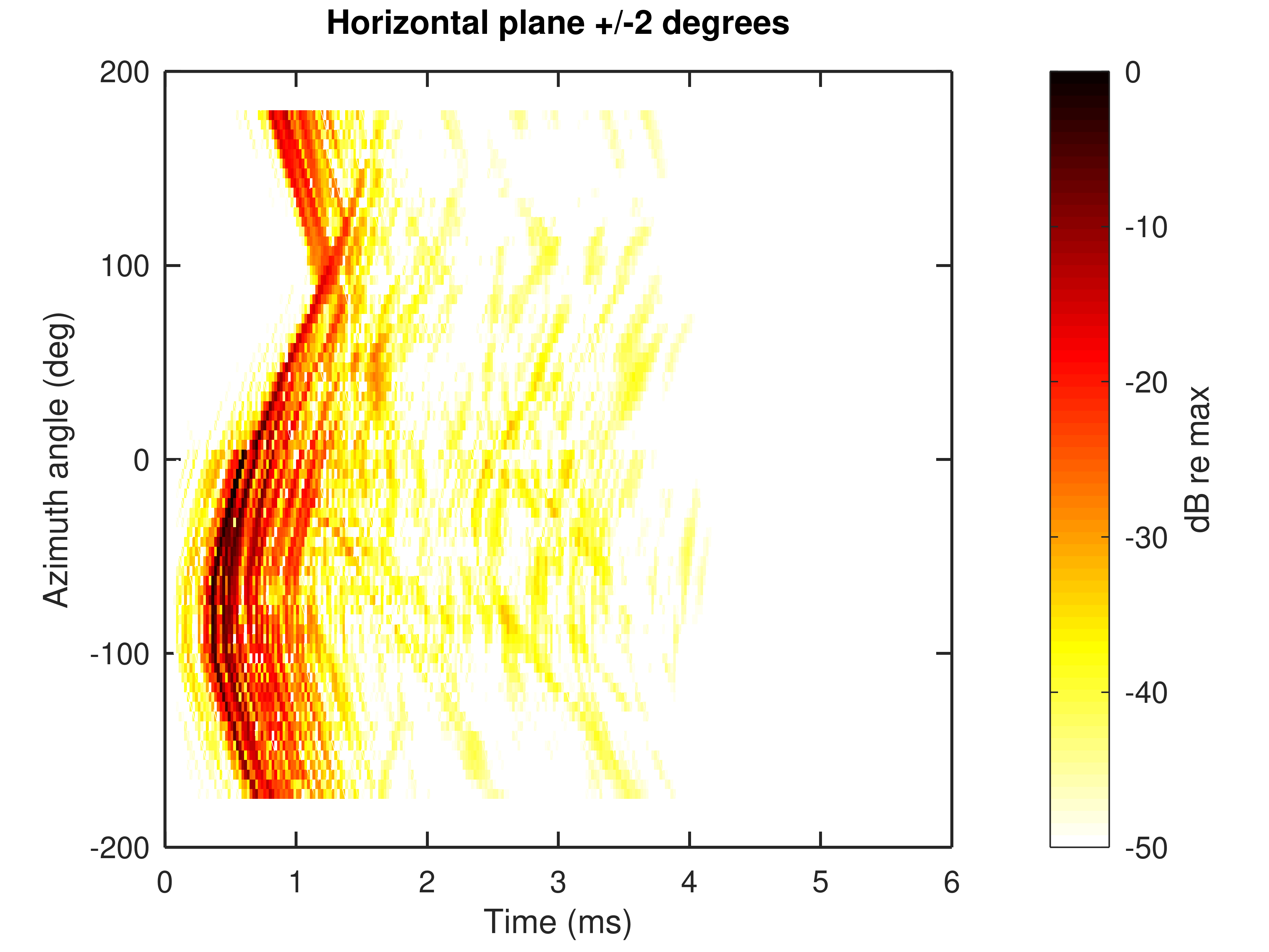

Plane: Horizontal
Domain: Amplitude spectral

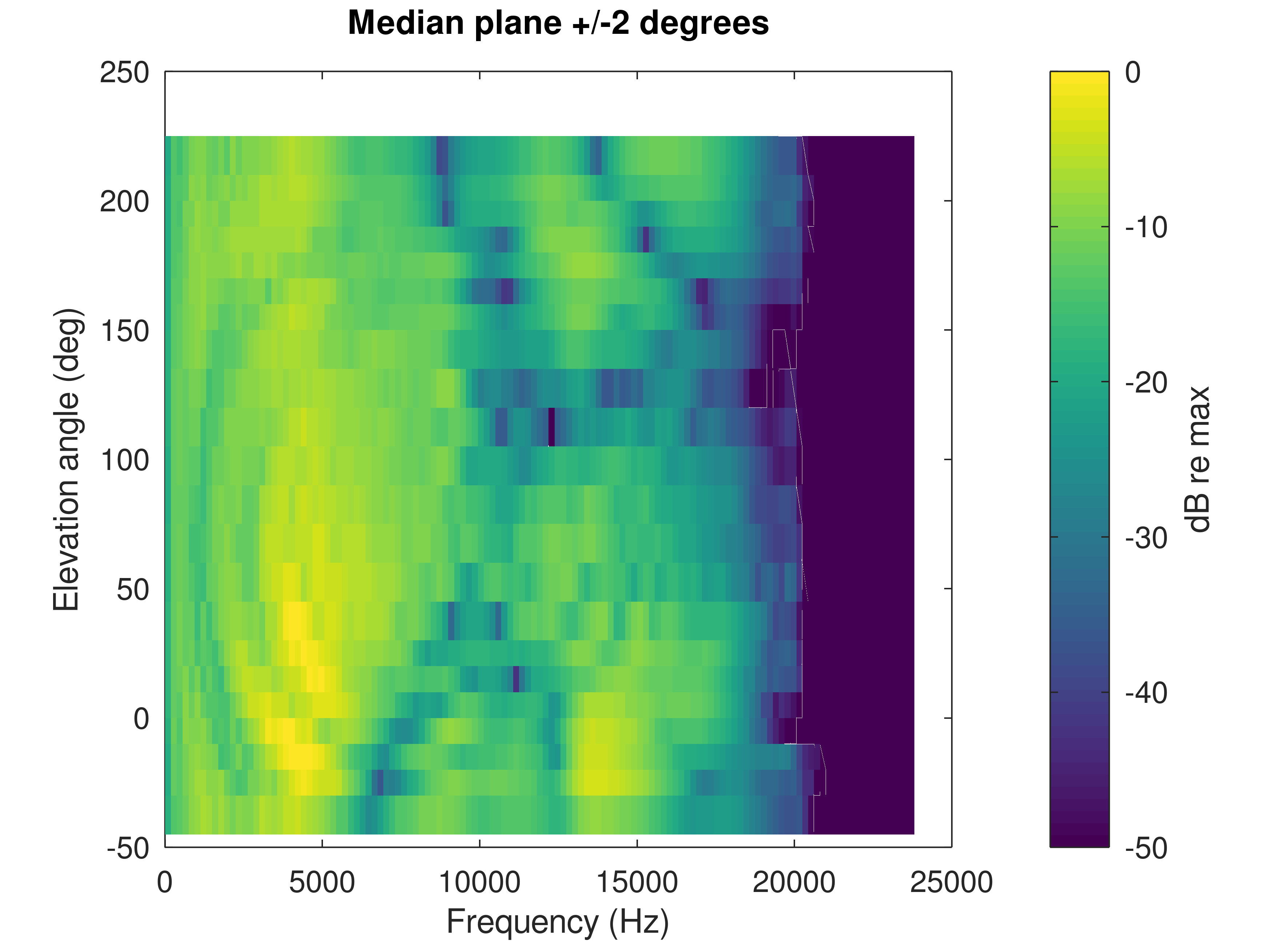

Plane: Median
Frequency axis: Linear

ITDs in the horizontal plane (in ms) Geometry of the available HRTFs



Datafile #2: HRTFs (time-aligned)

Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: P0396_FreeFieldComp_NoITD_48kHz.sofa

Size: 2658193 bytes = 2.54 MB. Date created: 2026-08-17 06:31:09. Date updated: 2026-08-17 07:33:45.

SOFA Properties:
Dimensions
SOFA Conventions R E M N S
SimpleFreeFieldHRIR 1.0 2 1 793 256 0

Left ear Right ear

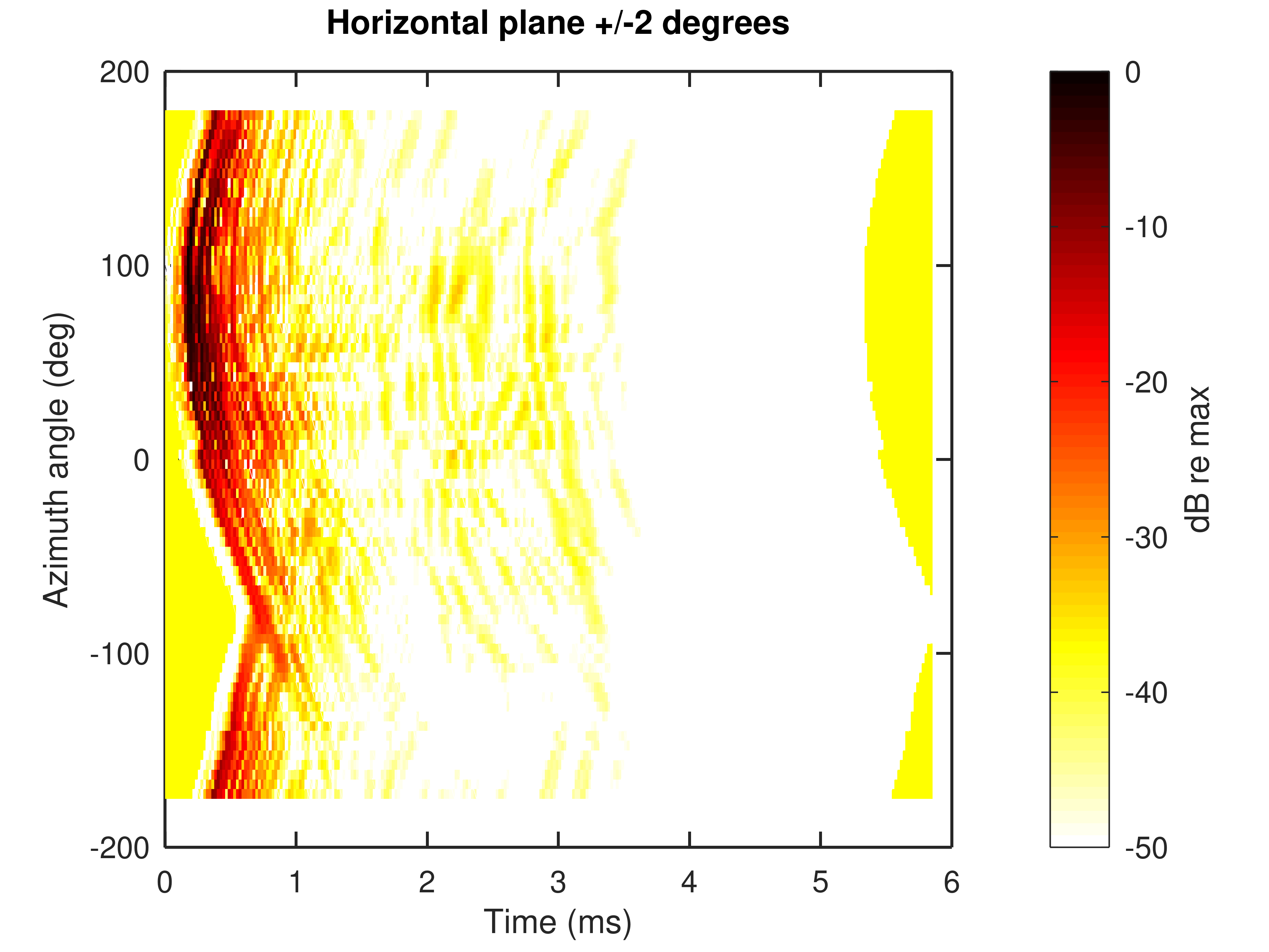

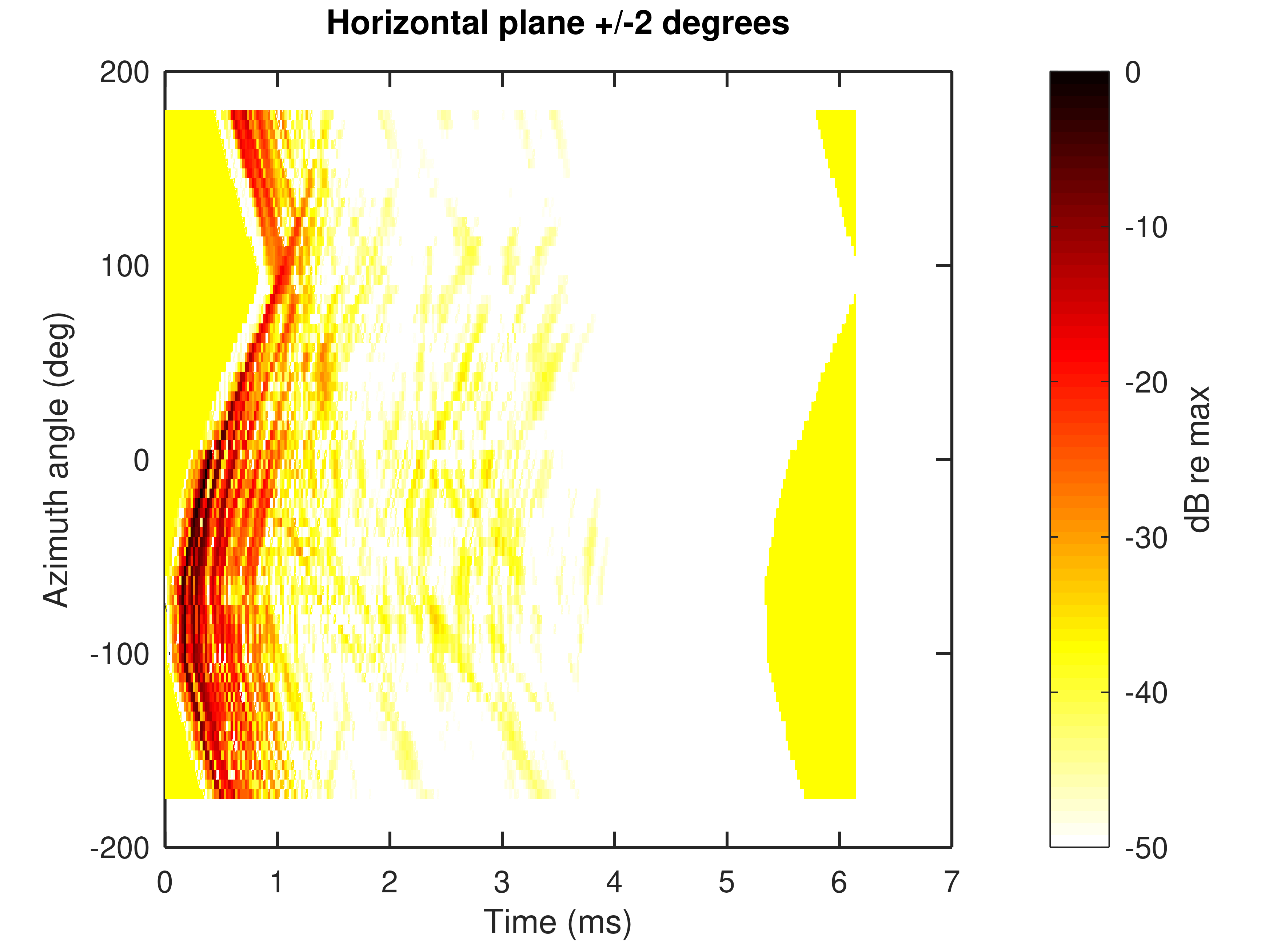

Domain: Time
Plane: Horizontal
Domain: Amplitude spectral
Plane: Median
Frequency axis: Linear

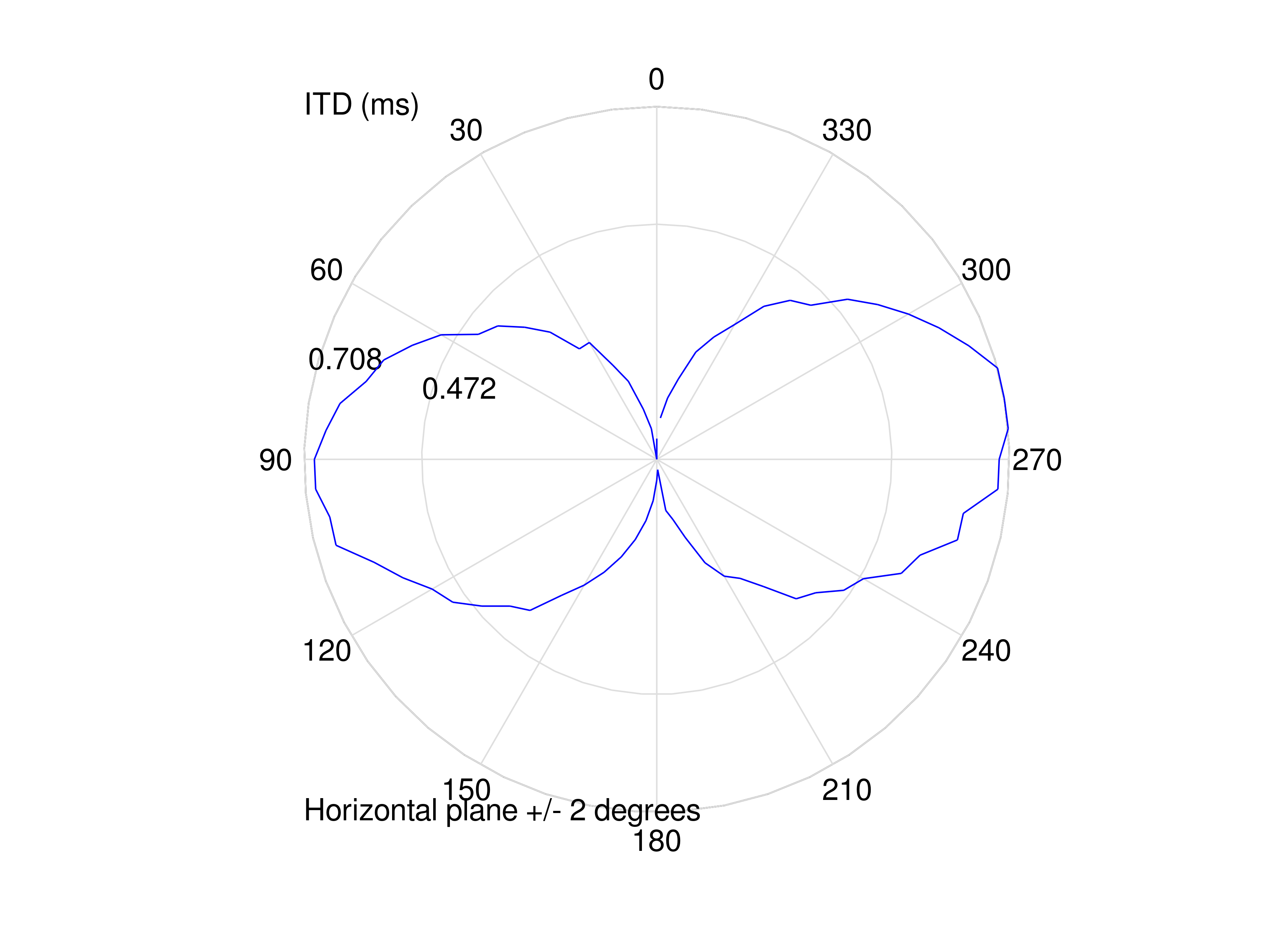

ITDs in the horizontal plane (in ms) Geometry of the available HRTFs



Datafile #3: HRTFs (min-phase compensated)

Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: P0396_FreeFieldCompMinPhase_48kHz.sofa

Size: 2823141 bytes = 2.69 MB. Date created: 2026-08-18 07:09:05. Date updated: 2026-08-18 07:09:27.

SOFA Properties:
Dimensions
SOFA Conventions R E M N S
SimpleFreeFieldHRIR 1.0 2 1 793 256 0

Left ear Right ear

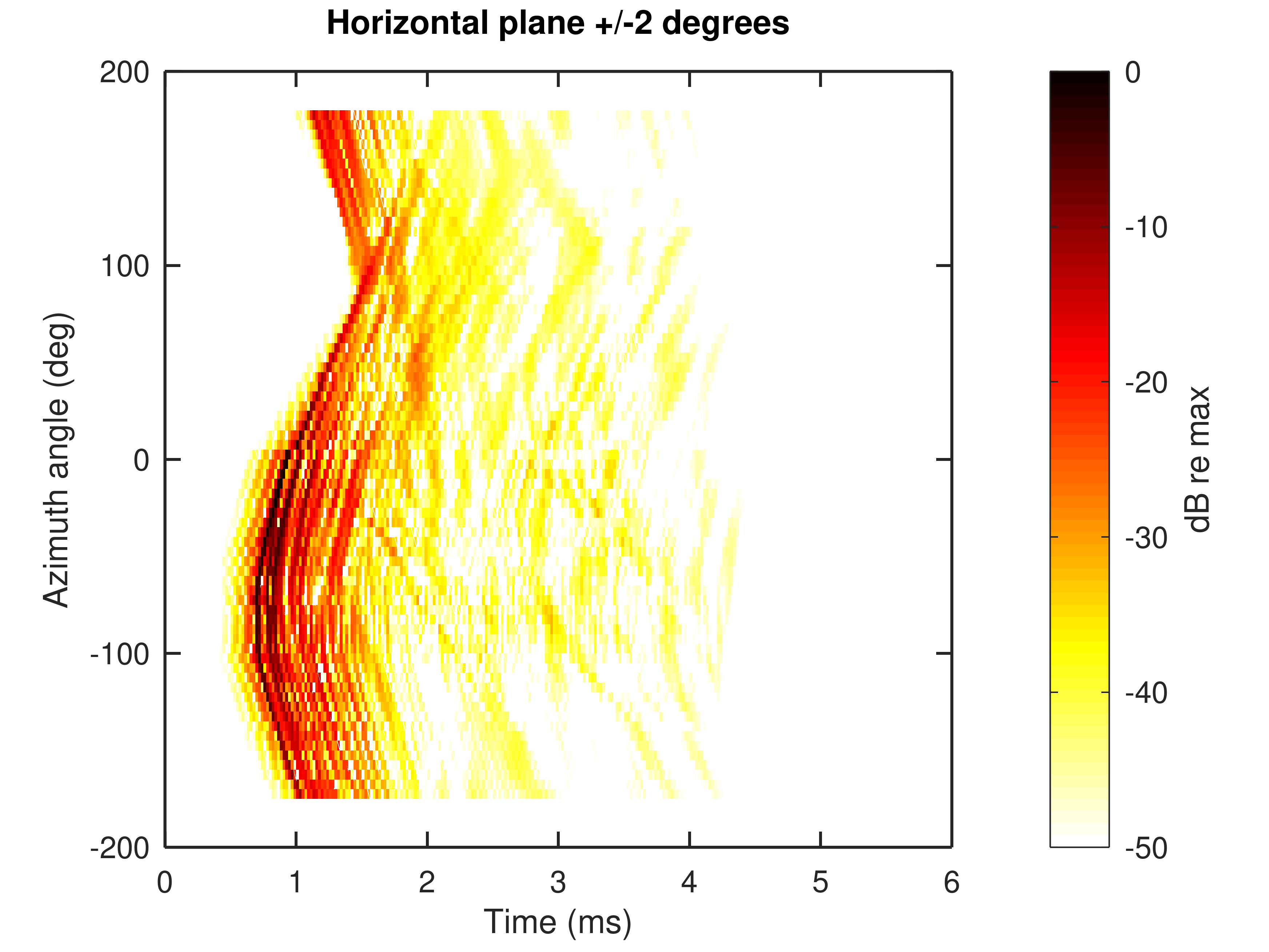

Domain: Time

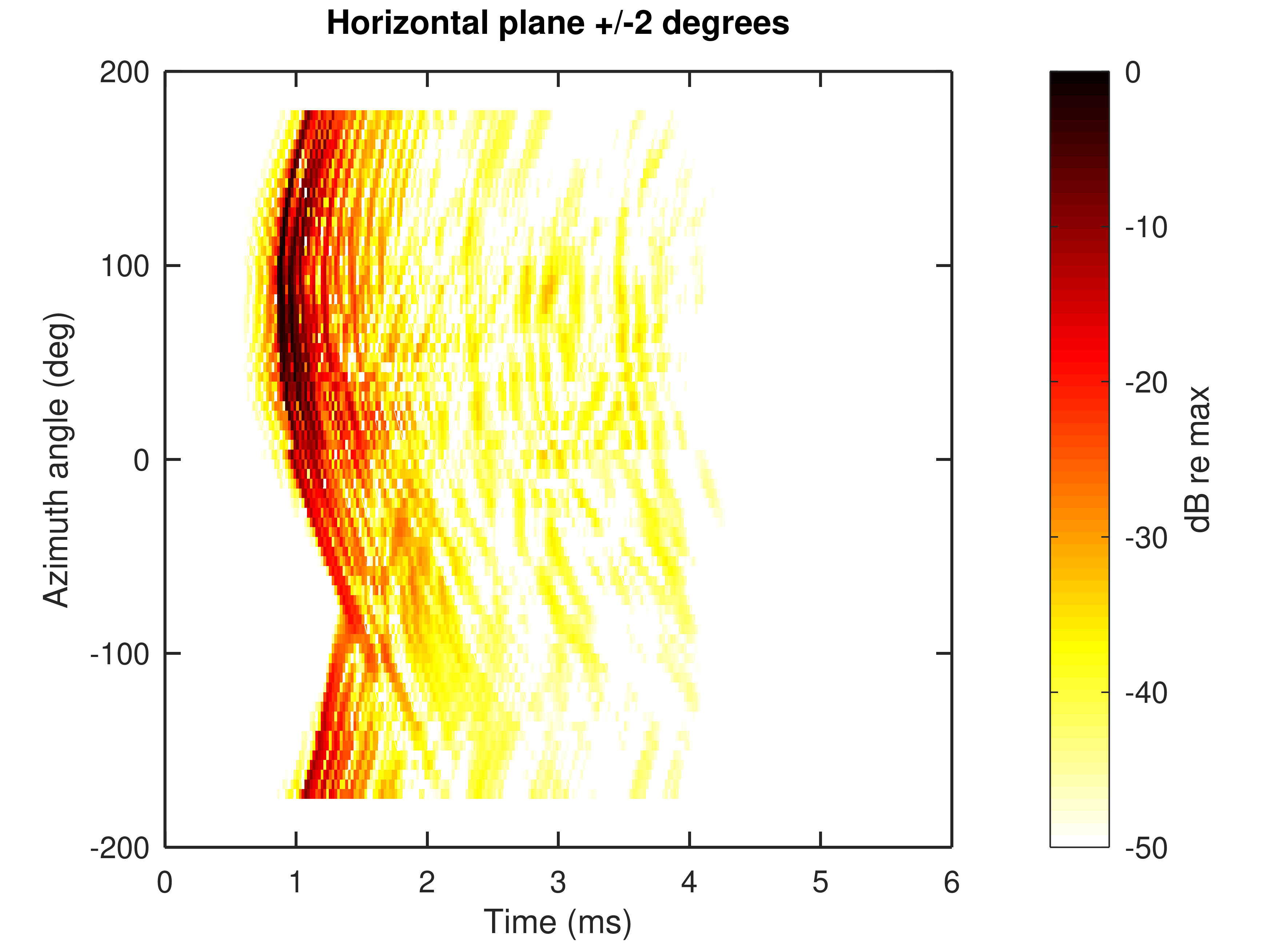

Plane: Horizontal
Domain: Amplitude spectral
Plane: Median
Frequency axis: Linear

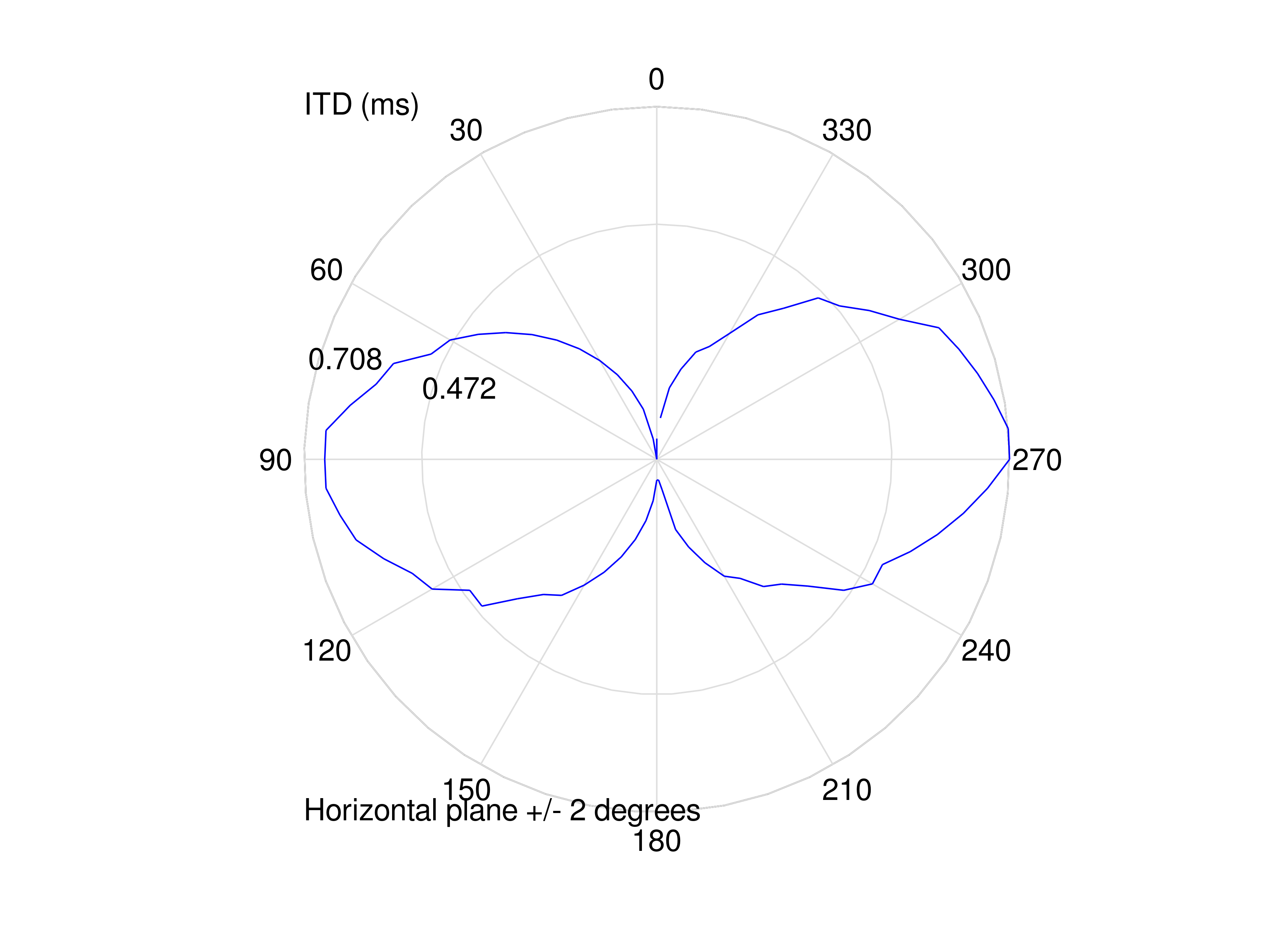

ITDs in the horizontal plane (in ms) Geometry of the available HRTFs



Datafile #4: HRTFs (min-phase compensated, time-aligned)

Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: P0396_FreeFieldCompMinPhase_NoITD_48kHz.sofa

Size: 2653356 bytes = 2.53 MB. Date created: 2026-08-17 06:31:10. Date updated: 2026-08-17 07:34:06.

SOFA Properties:
Dimensions
SOFA Conventions R E M N S
SimpleFreeFieldHRIR 1.0 2 1 793 256 0

Left ear Right ear

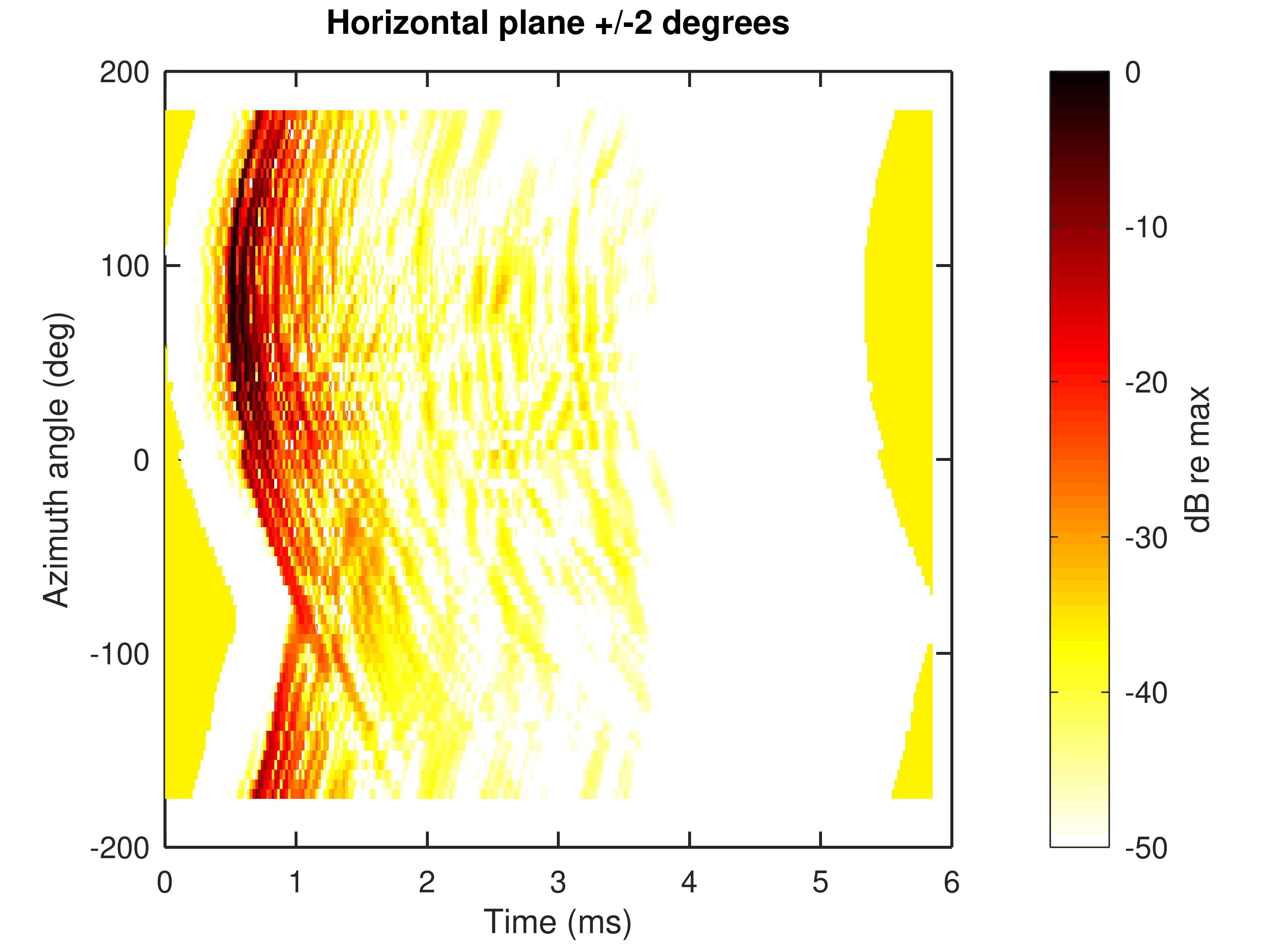

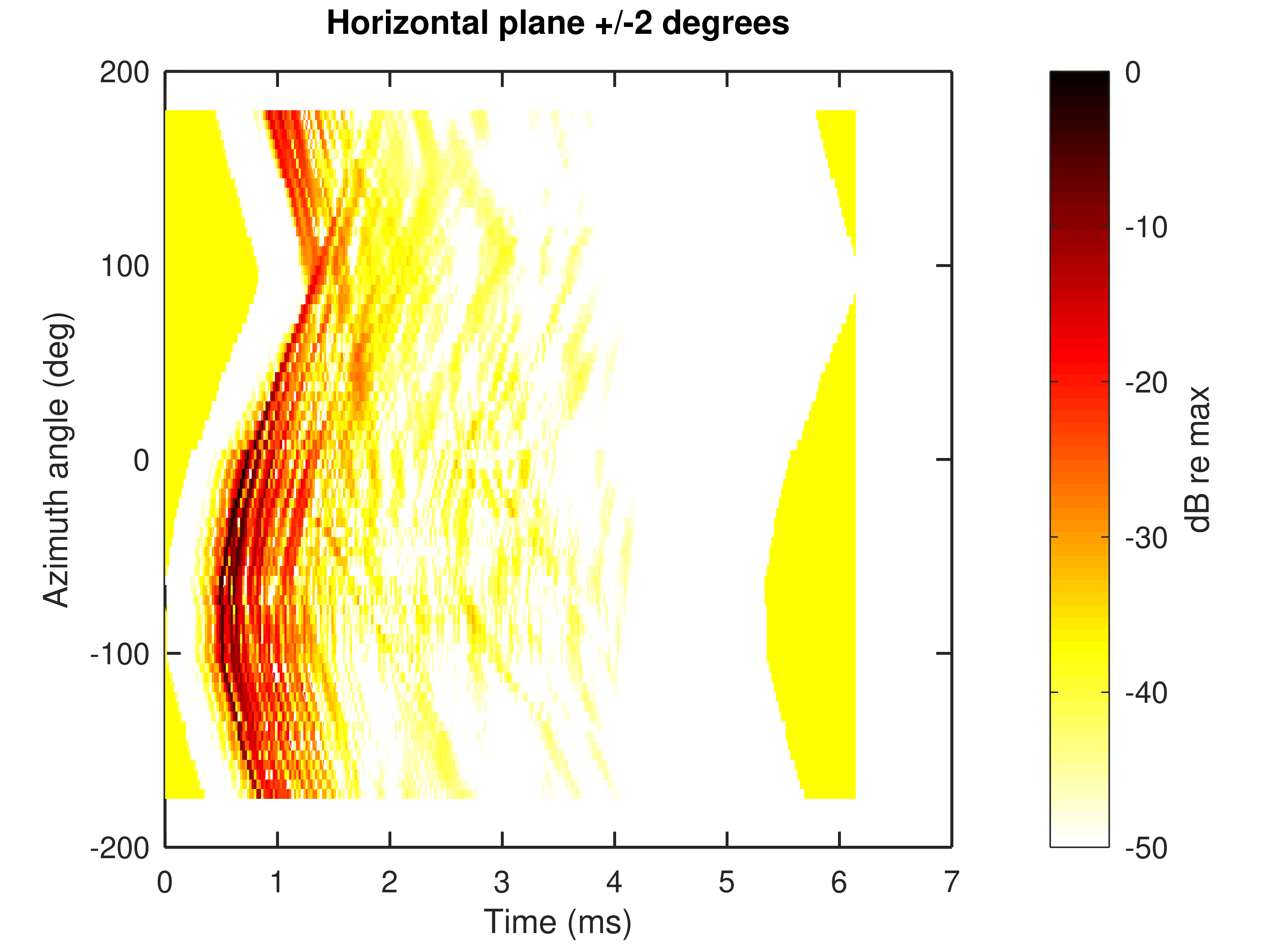

Domain: Time
Plane: Horizontal

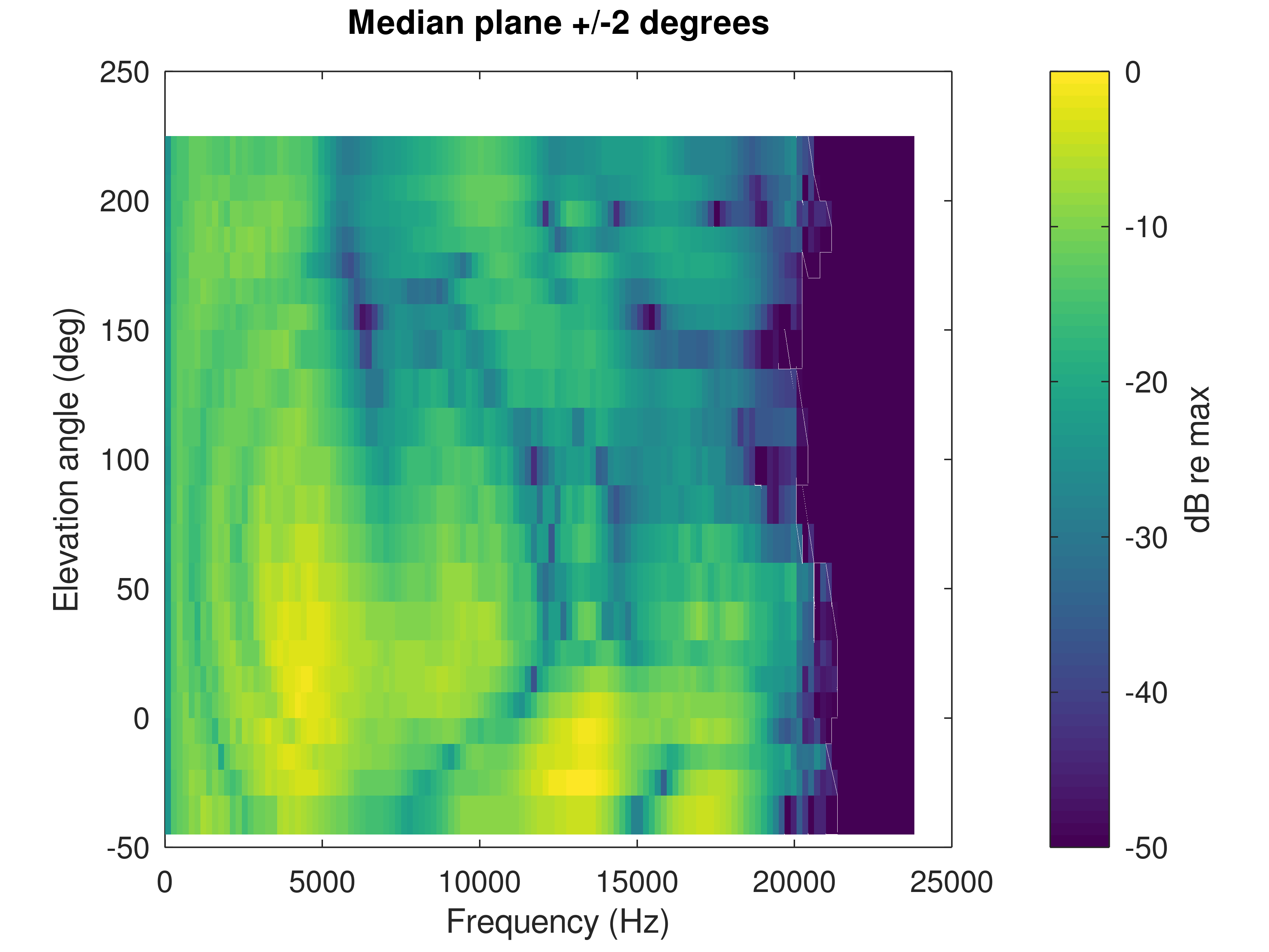

Domain: Amplitude spectral
Plane: Median
Frequency axis: Linear

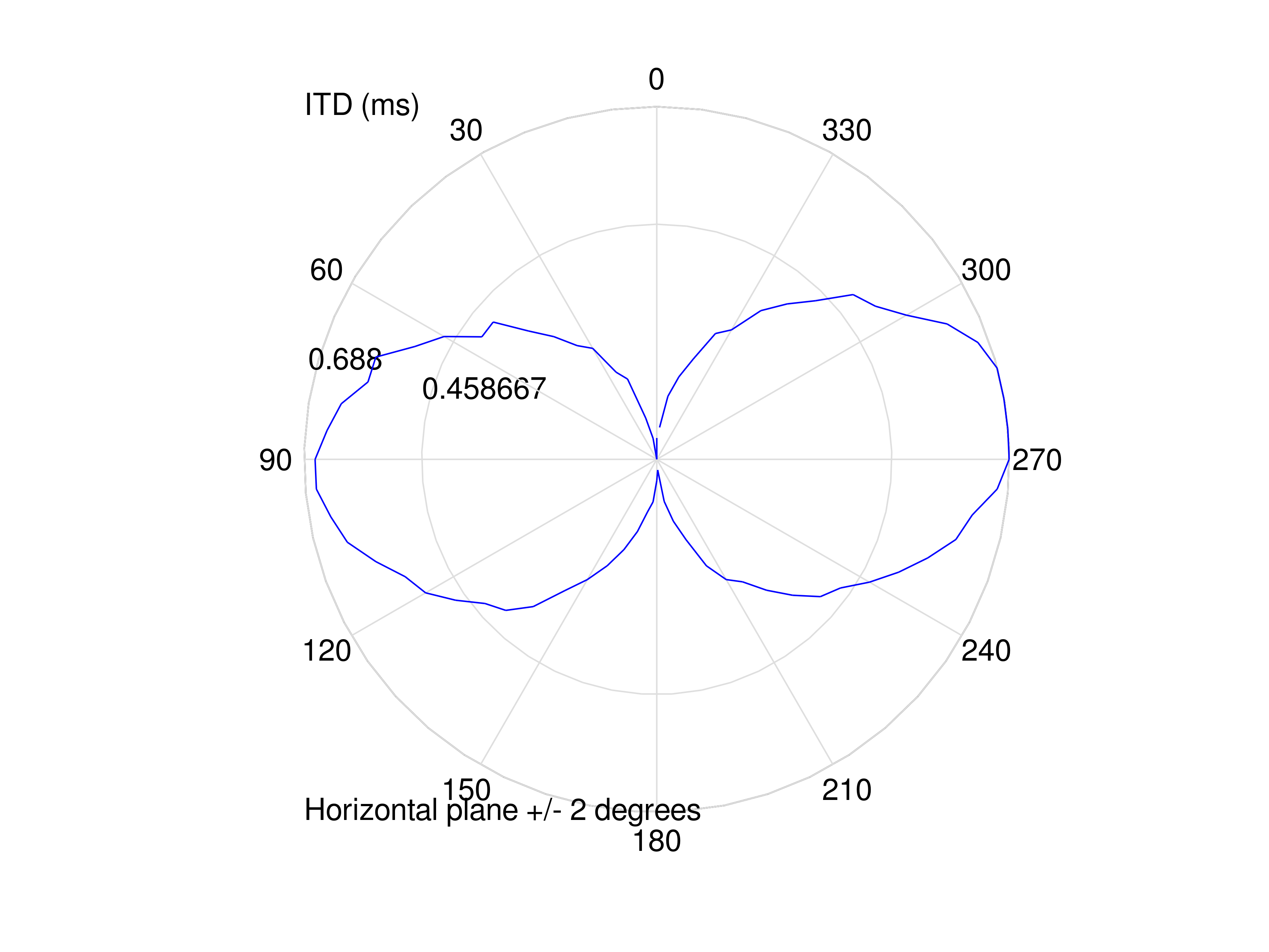

ITDs in the horizontal plane (in ms) Geometry of the available HRTFs



Datafile #5: Raw TFs

Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: P0396_Raw_48kHz.sofa

Size: 26939383 bytes = 25.69 MB. Date created: 2026-08-17 06:31:12. Date updated: 2026-08-17 07:34:29.

SOFA Properties:
Dimensions
SOFA Conventions R E M N S
SimpleFreeFieldHRIR 1.0 2 1 793 2400 0

Left ear Right ear
Domain: Time
Plane: Horizontal

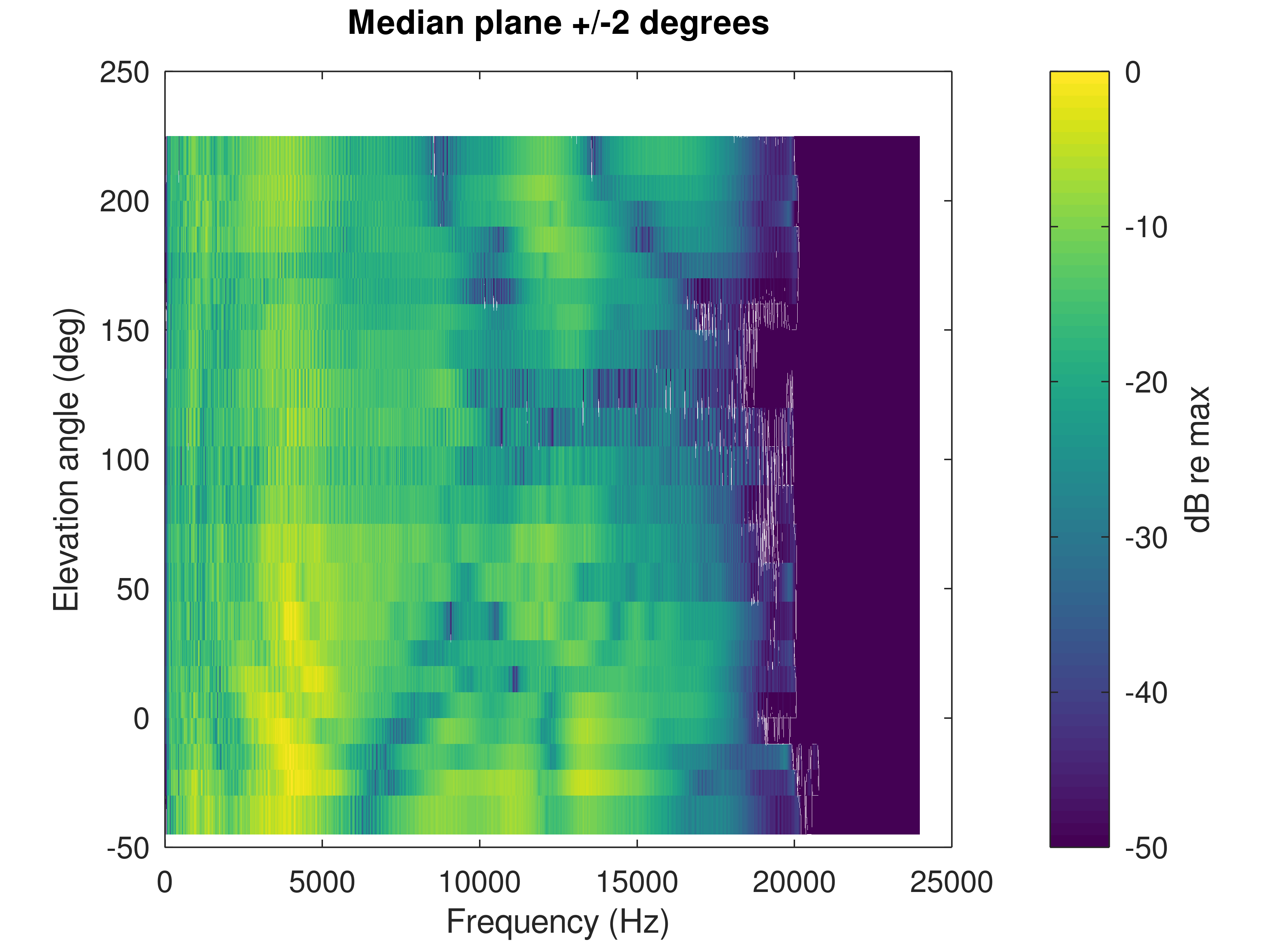

Domain: Amplitude spectral

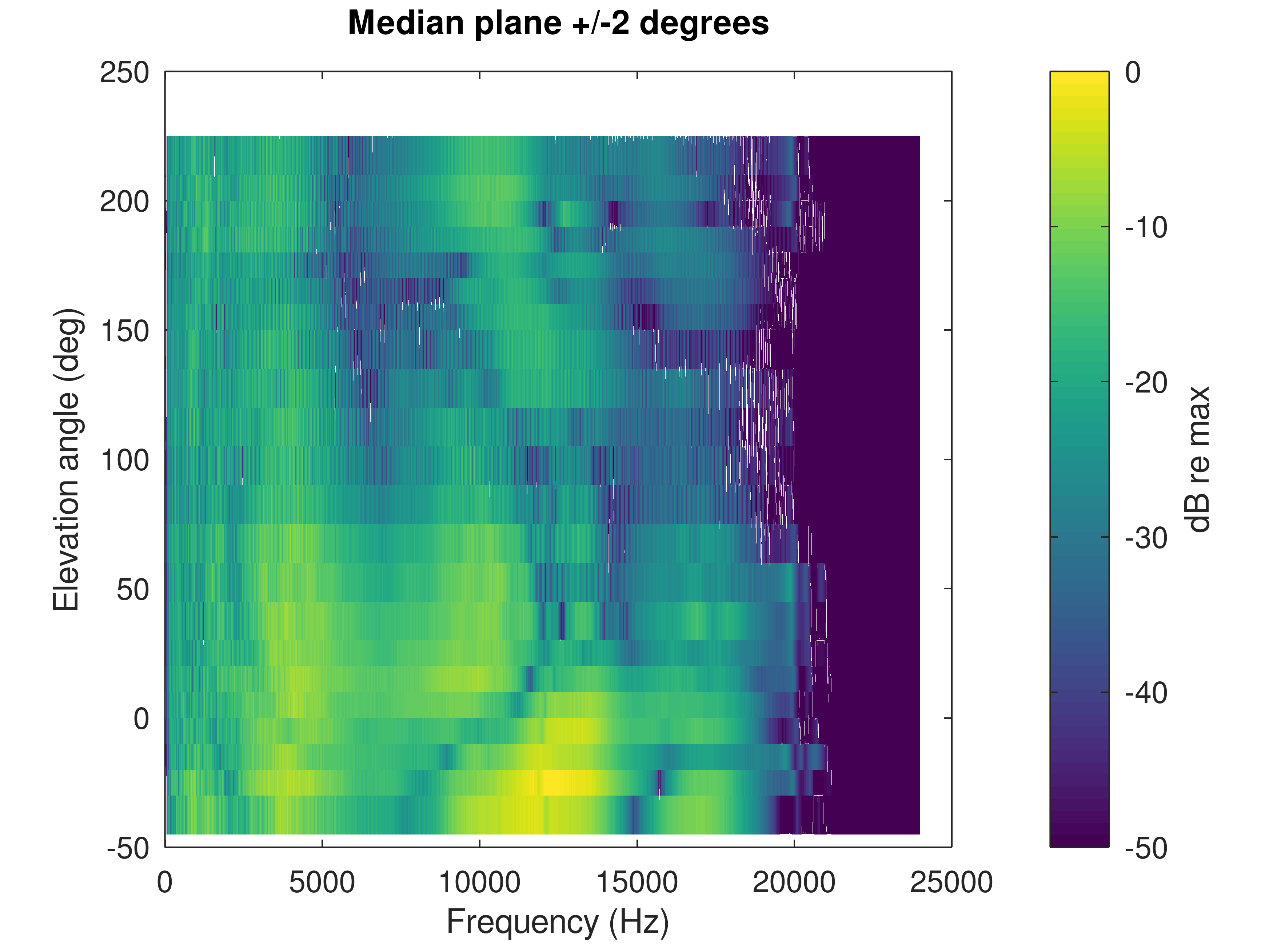

Plane: Median
Frequency axis: Linear

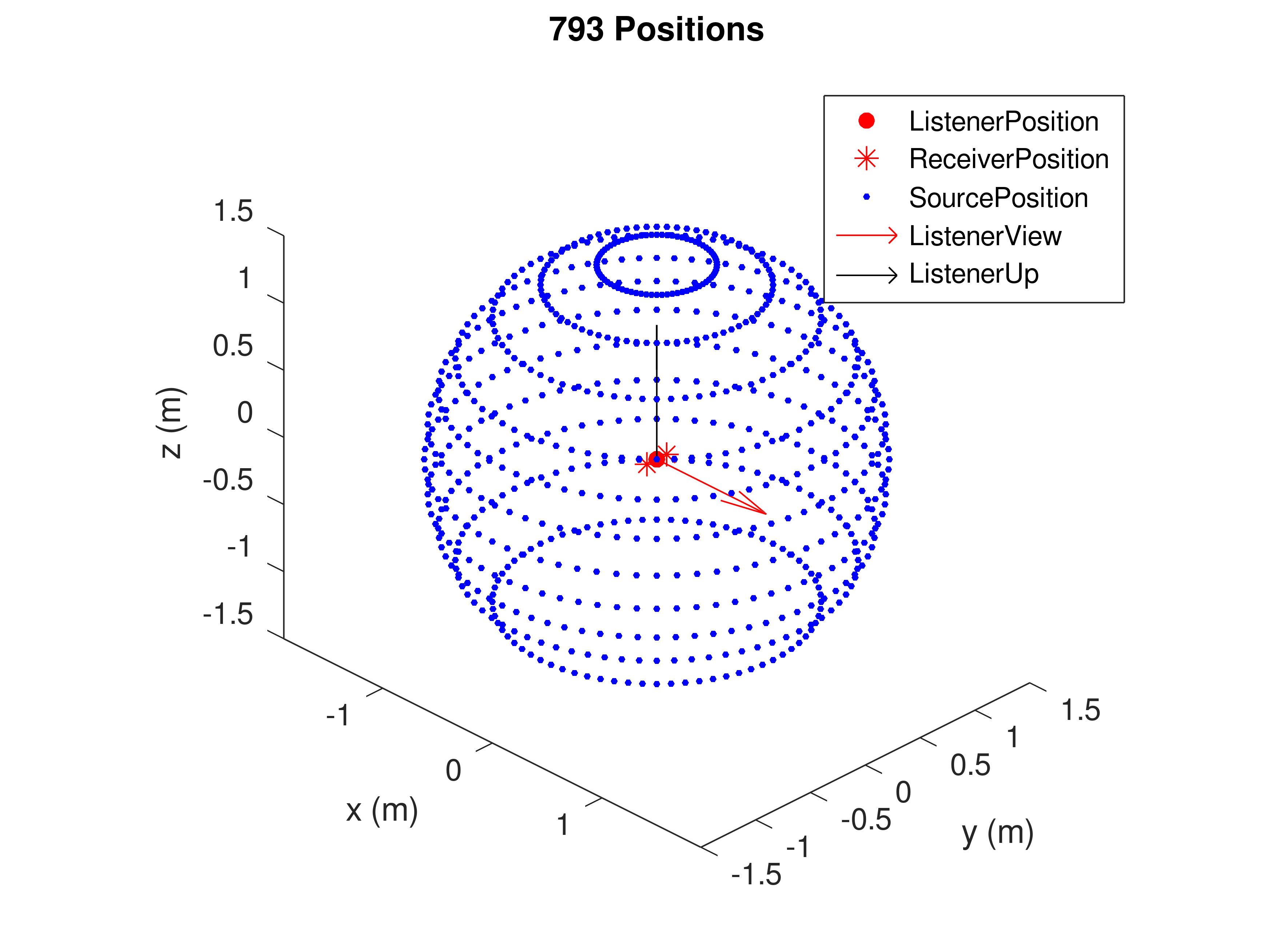

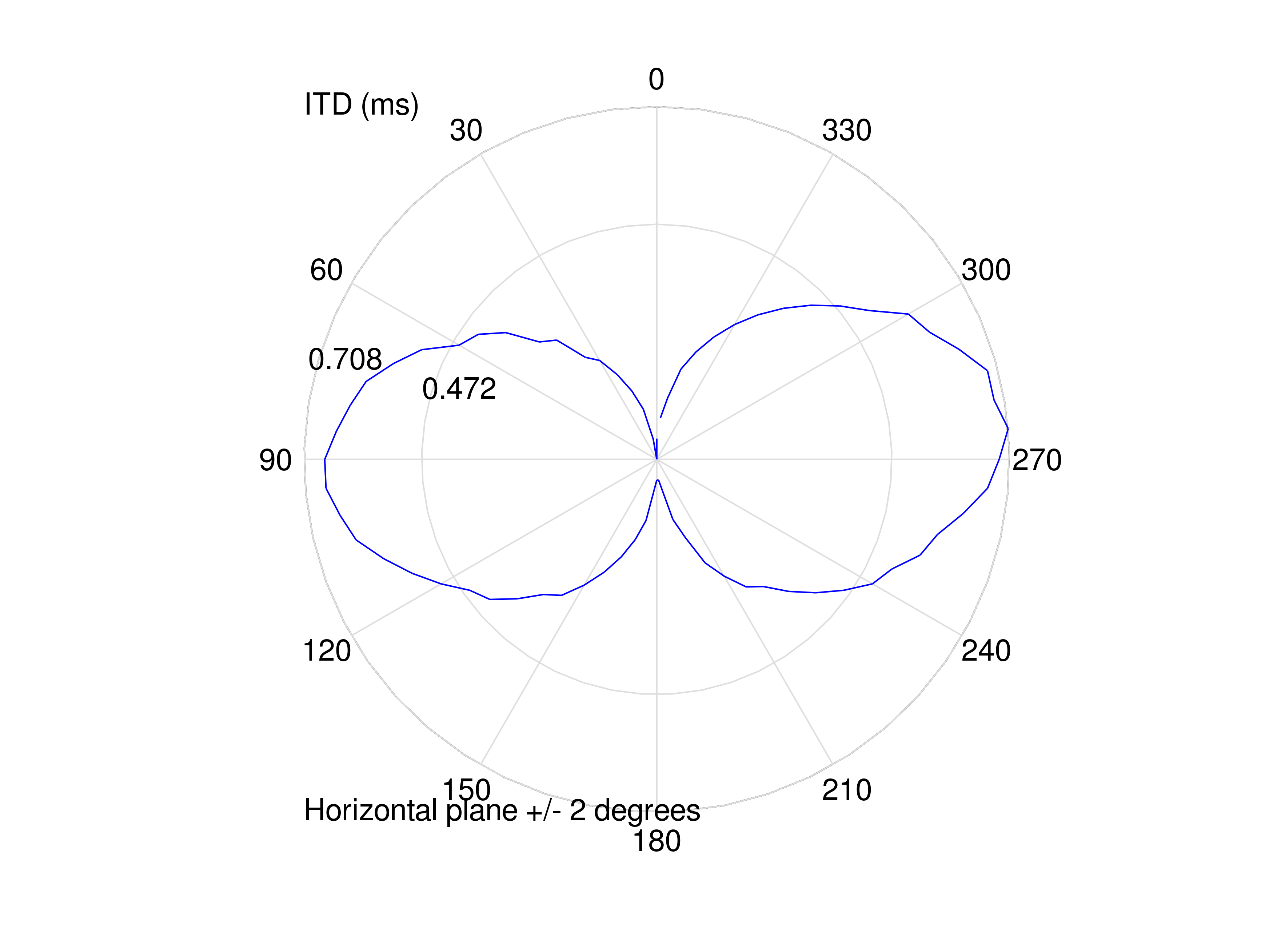

ITDs in the horizontal plane (in ms) Geometry of the available HRTFs



Datafile #6: Raw TFs (time-aligned)

Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: P0396_Raw_NoITD_48kHz.sofa

Size: 26824525 bytes = 25.58 MB. Date created: 2026-08-18 07:09:16. Date updated: 2026-08-18 07:09:51.

SOFA Properties:
Dimensions
SOFA Conventions R E M N S
SimpleFreeFieldHRIR 1.0 2 1 793 2400 0

Left ear Right ear

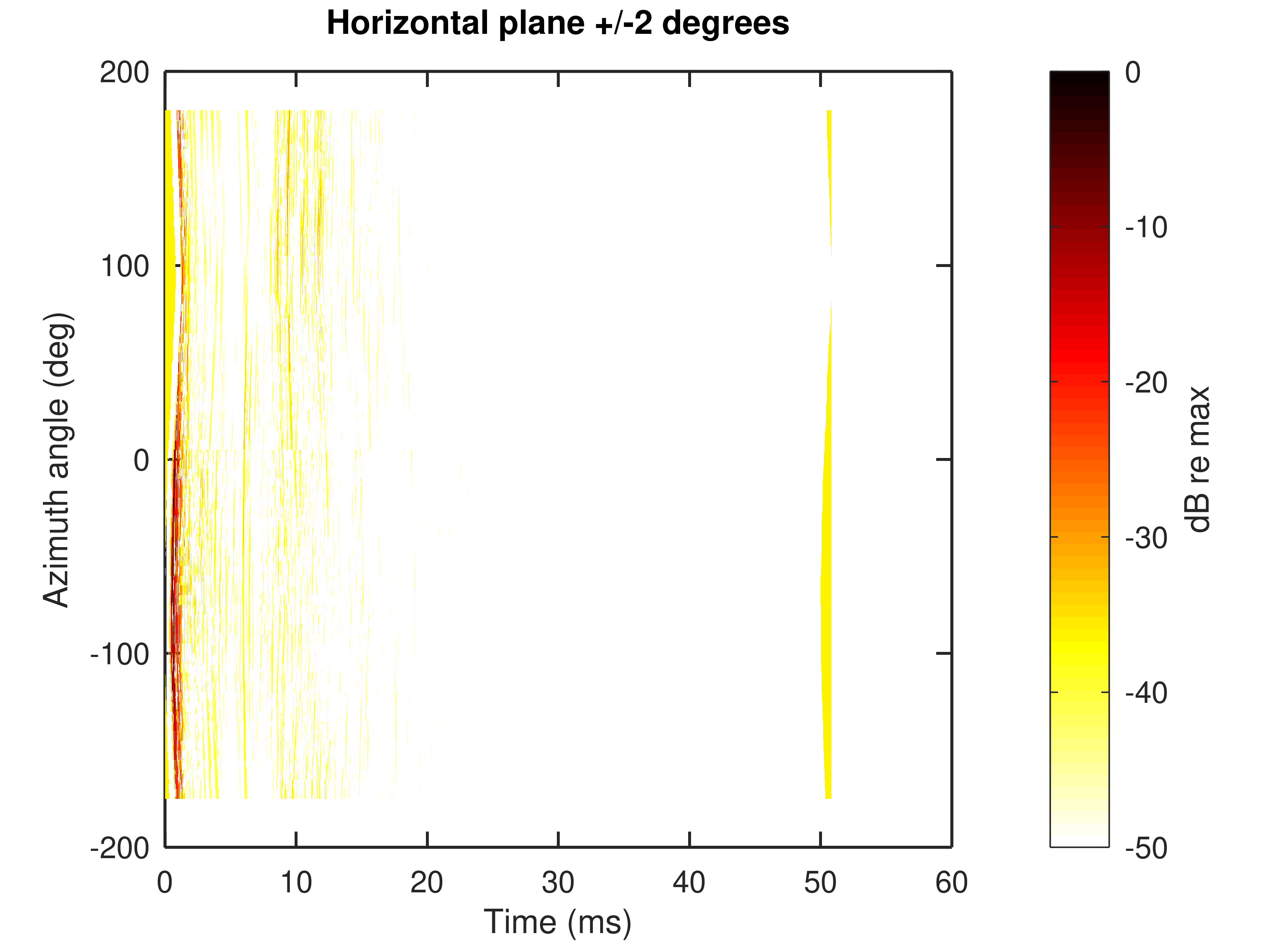

Domain: Time

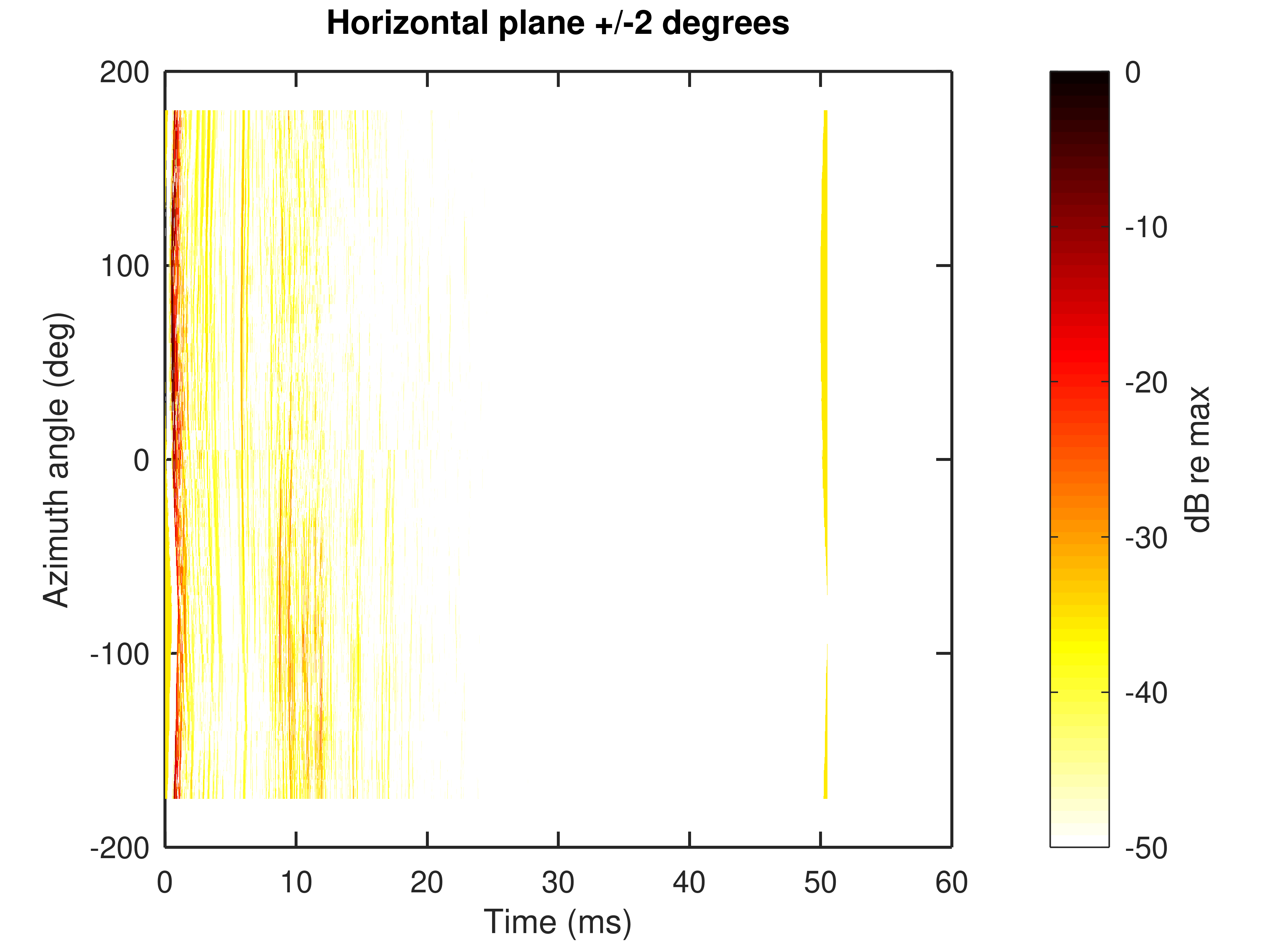

Plane: Horizontal
Domain: Amplitude spectral
Plane: Median
Frequency axis: Linear

ITDs in the horizontal plane (in ms) Geometry of the available HRTFs



Datafile #7: Raw TFs (windowed)

Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: P0396_Windowed_48kHz.sofa

Size: 2830187 bytes = 2.7 MB. Date created: 2026-08-18 07:09:29. Date updated: 2026-08-18 07:10:34.

SOFA Properties:
Dimensions
SOFA Conventions R E M N S
SimpleFreeFieldHRIR 1.0 2 1 793 256 0

Left ear Right ear
Domain: Time
Plane: Horizontal
Domain: Amplitude spectral
Plane: Median
Frequency axis: Linear

ITDs in the horizontal plane (in ms) Geometry of the available HRTFs



Datafile #8: Raw TFs (windowed, time-aligned)

Datafile Type: Spatial acoustics: HRTFs (SOFA)
Datafile Name: P0396_Windowed_NoITD_48kHz.sofa

Size: 2660325 bytes = 2.54 MB. Date created: 2026-08-17 06:31:13. Date updated: 2026-08-17 07:34:50.

SOFA Properties:
Dimensions
SOFA Conventions R E M N S
SimpleFreeFieldHRIR 1.0 2 1 793 256 0

Left ear Right ear

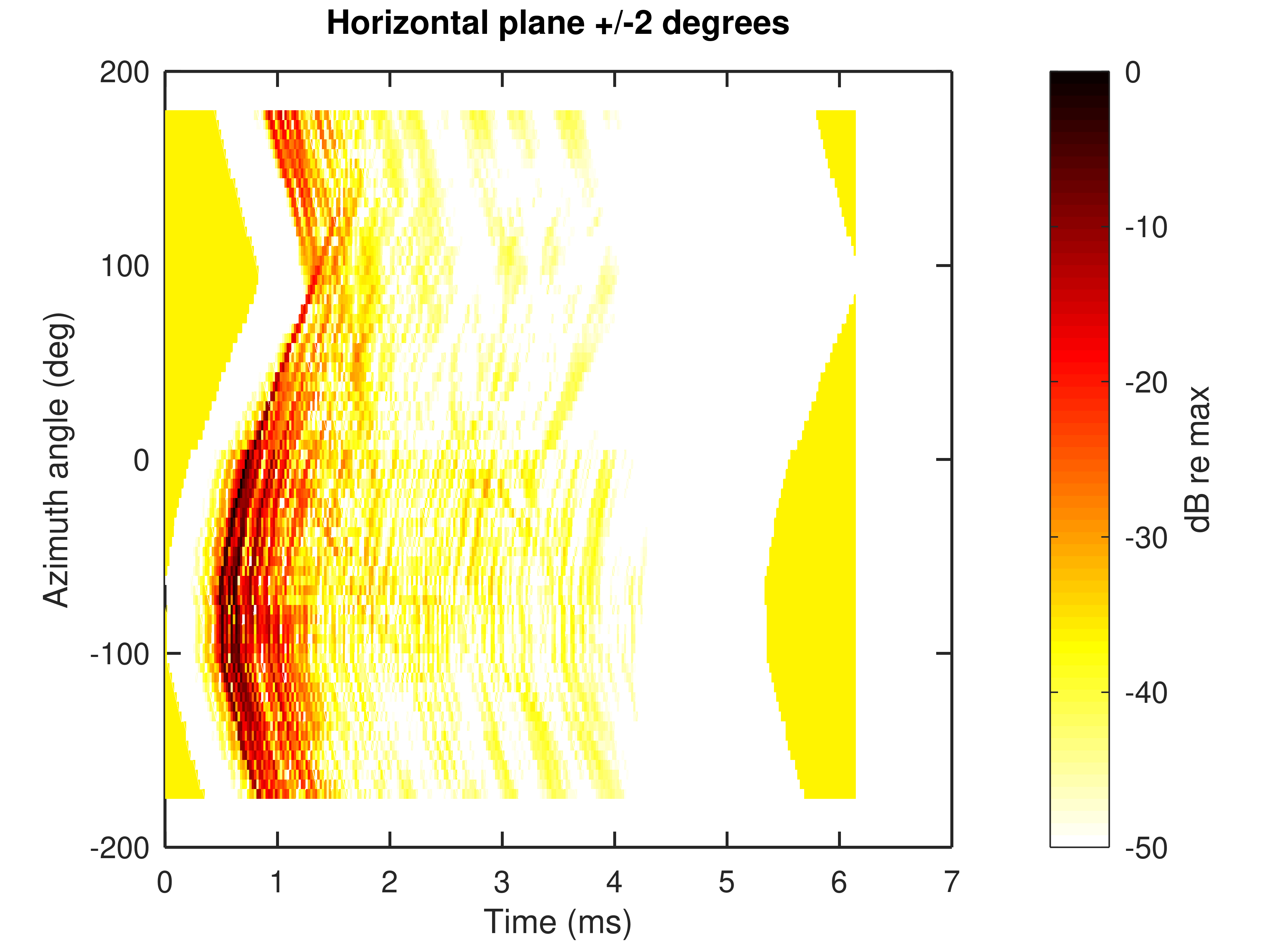

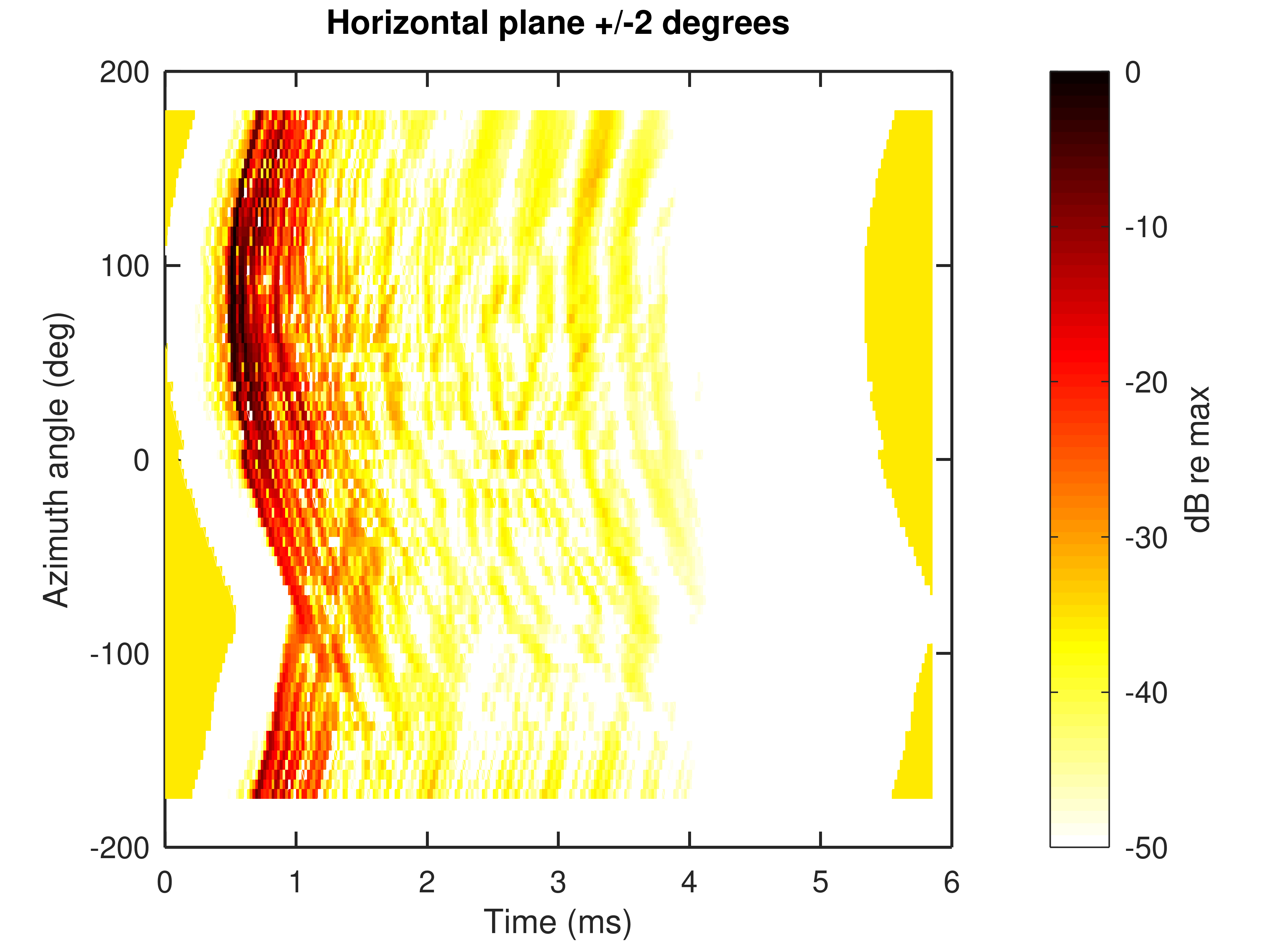

Domain: Time
Plane: Horizontal

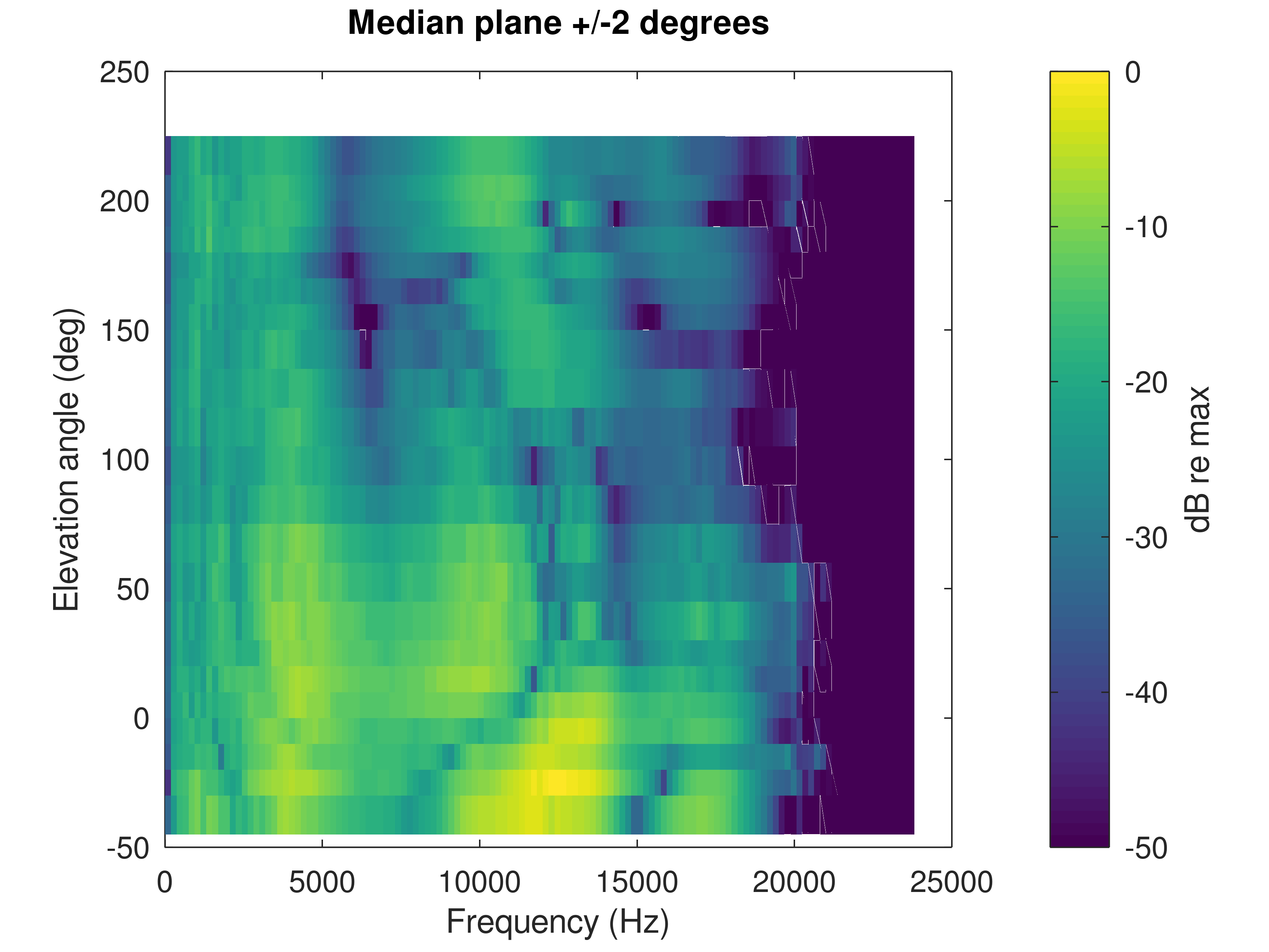

Domain: Amplitude spectral

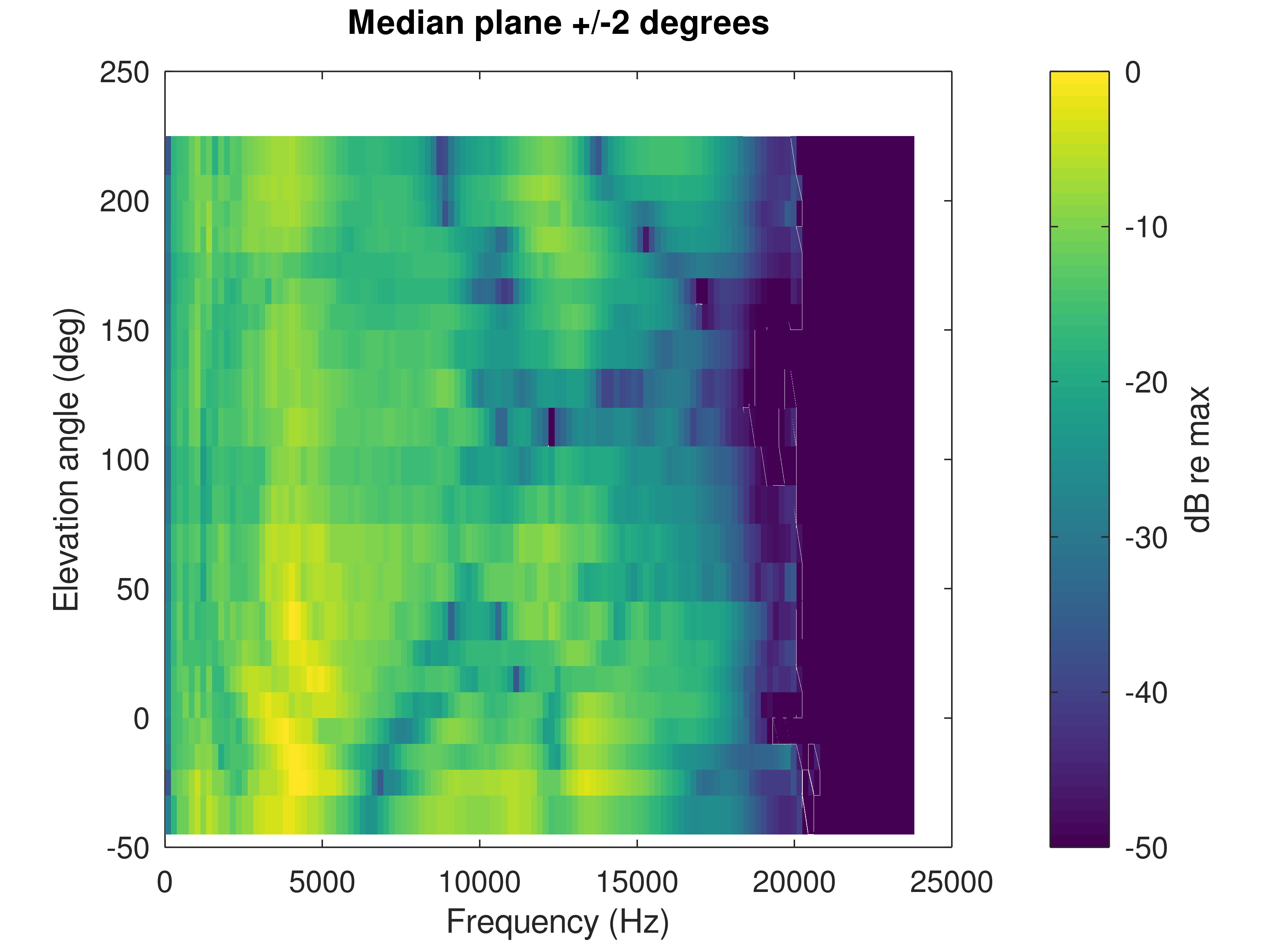

Plane: Median
Frequency axis: Linear

ITDs in the horizontal plane (in ms) Geometry of the available HRTFs



According to the dataset definition, the following 1 files are missing:
